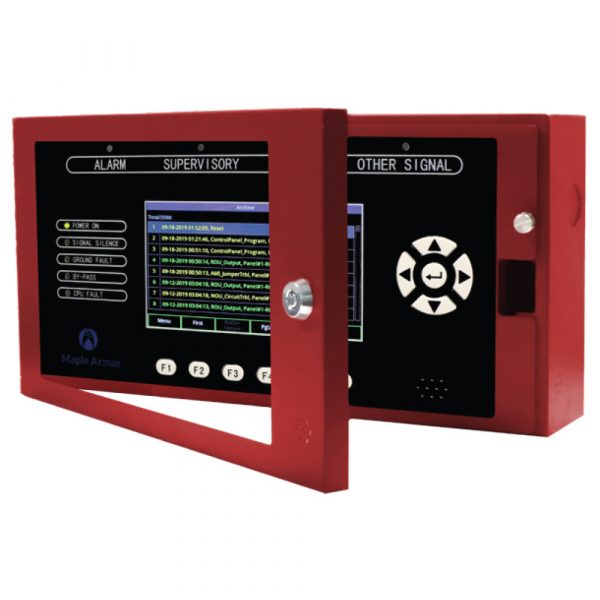

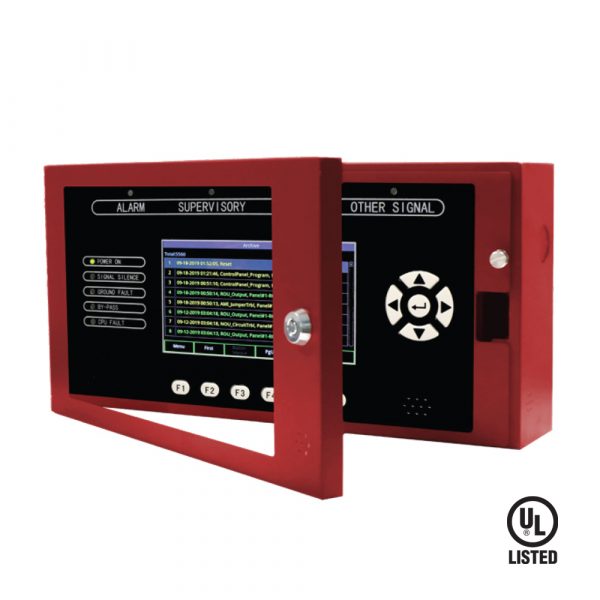

IQ600RA Remote Annunciator
The IQ600RA is an intelligent remote LCD annunciator designed to be used with the Fireguard series IQ600 and IQ601 control panels. The IQ600LA is connected to IQ600/IQ601 series panels via the external CAN network and it is powered by an external 24 VDC power source from the panel. Up to 109 IQ600RA remote annunciator can be connected. The LCD can display up to 8 events simultaneously. Users can browse more events by pressing the up/down buttons until the first or the last events message is reached. Events are displayed according to the following rules:
- Events priority: (1) Alarm, (2) Supervisory, (3) Trouble, (4) Other Signal (5) Output.
Within events of the same priority, all events are displayed in order of occurrence, the latest being displayed first. however, the sequence of the alarm events is configurable.
Features
- 7” color LCD and a resolution of 800 X 480
- Events are displayed in different colors
- 6 function keys and 5 navigation keys 109 annunciators supported in the system
- 9 LED indicators and intuitive fire-alarm user interface Display annunciate up to 8 zones simultaneously Access door with lock
- *For indoor installation only
