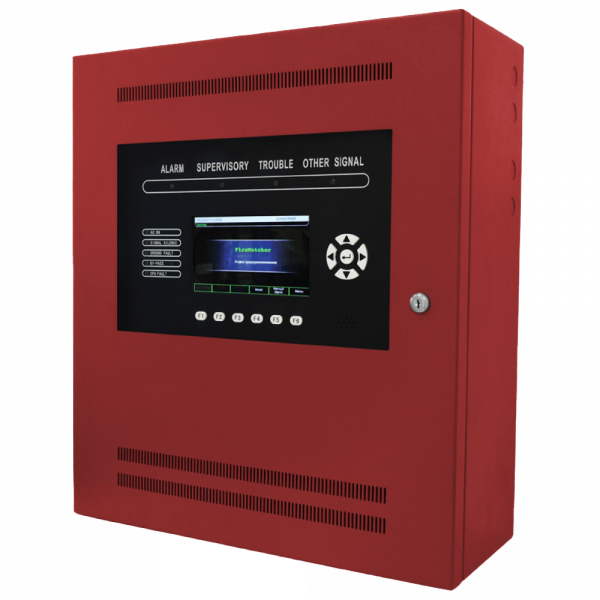

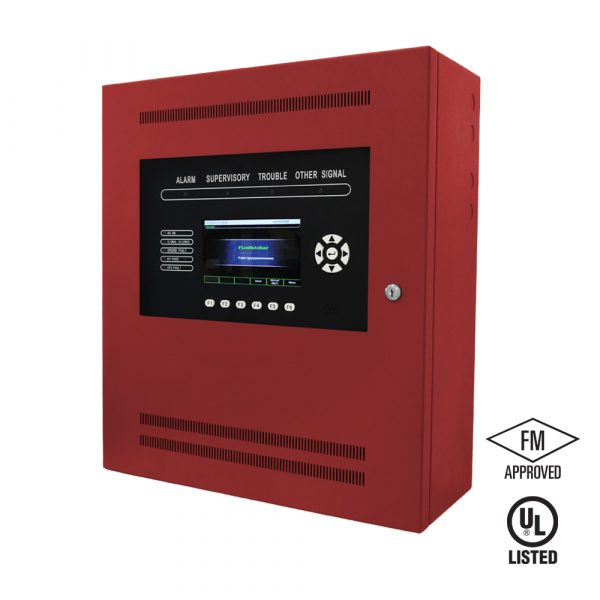

The IQ600 is a state-of-the-art addressable Fire Alarm Control Panel built for small to medium-scale commercial, institutional, and industrial facilities. Fully compliant with UL864 10th edition and FM Approved, it delivers powerful, scalable fire detection and notification in a modular, future-proof design — equally suited to new installations and retrofit projects.

Scalable Detection & Notification
The IQ600 supports up to 4 addressable SLC loops, each accommodating 252 devices, for a total capacity of up to 1,008 addressable points. Up to 10 Notification Appliance Circuits (Class A or B) and 4+1 Form C dry relay contacts provide comprehensive alarm and signalling coverage. The panel connects to up to 109 remote panels or annunciators via CAN bus network, enabling building-wide or campus-wide fire safety integration.

Intuitive Interface
A vibrant 7″ colour LCD at 800×480 resolution, 9 LED indicators, and 6 auxiliary function keys give operators clear, immediate system visibility. Four levels of password protection with field-programmable access definitions ensure secure, role-based system management.

Advanced Features

• Automatic sequential device addressing
• Positive alarm sequence to minimise false alarms
• Two-stage operation support
• Dual event logs: 1,000-alarm history and 5,000-event general log
• PC or front-panel programmable
• USB, RJ45 and RS232 interfaces for programming and third-party monitoring

Key Specifications

• Primary Supply: 110–120 VAC or 220–240 VAC (50/60Hz)
• Battery Backup: Up to two 40Ah sealed lead-acid batteries
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Operating Humidity: Up to 93% @ 32°C (90°F)
• Connections: 12–18 AWG
• Mounting: Surface or semi-flush wall mount

Certifications: UL Listed | FM Approved | UL864 10th Edition Compliant
