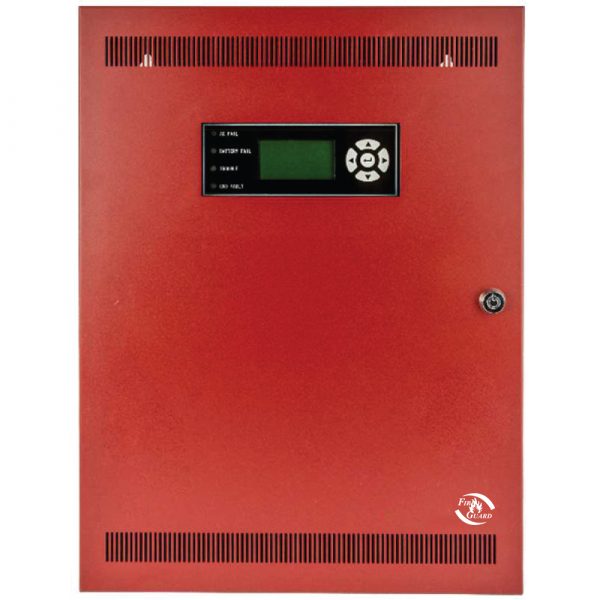

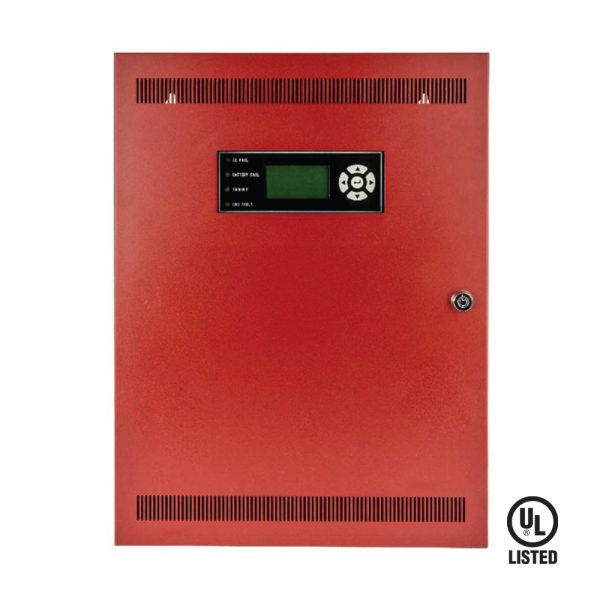

The IQ600NB is a state-of-the-art addressable Notification Appliance Circuit (NAC) Booster Panel built for small to medium-scale commercial, institutional, and industrial facilities. Fully compliant with UL 864 10th edition, it is equally suited for new installations and retrofit applications where additional notification power is needed.

Powerful, Flexible Notification Output
The IQ600NB delivers 8 independently programmable NACs (Class A or B, 3A each, 10A total), giving installers the flexibility to tailor notification zones precisely to the building layout. Four Form C dry relay contacts provide additional outputs for indicating AC fail, battery fail, ground fault, and general system troubles.

Intelligent & Intuitive
A 4″ LCD with 128×32 resolution, 4 navigation buttons, 1 enter button, and 4 LED indicators provide a clear, easy-to-use interface. The panel is fully configurable from the front panel with password protection and occupies 9 addresses on the SLC loop.

Key Specifications

• Primary Supply: 110–120 VAC or 220–240 VAC (50/60Hz)
• Secondary Power: Two 12V 40AH max (external) / Two 12V 18AH max (cabinet)
• Communication: SLC Class A & B / Pass Through Class A & B
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Operating Humidity: Up to 93% @ 32°C (90°F)
• Mounting: Surface or flush wall mount

Certifications: UL Listed (UL 864 10th Edition)
