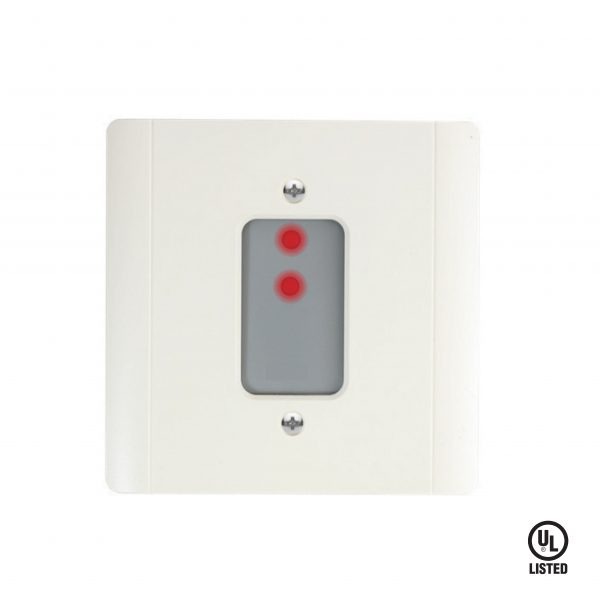

The IQ611MR is an intelligent addressable relay module designed to extend the control capabilities of fire alarm systems. Providing two simultaneously activated relay output sets, it takes a single address on the Signaling Line Circuit (SLC) or Data Communication Link (DCL) of the fire alarm control panel — enabling precise, programmable control of auxiliary devices such as door holders, fans, lifts, and other building systems.

Clear Status Indication
A red LED provides continuous visual feedback on the module’s status. During normal operation it blinks every 4 seconds; when an event is activated, the LED blinks at an extended rate to indicate the active condition, returning to normal once the event clears.

Flexible Installation
Compatible with both Class A/DCLA and Class B/DCLB circuit configurations, the IQ611MR mounts directly onto a standard 2×4 or 4×4 electrical box using the IQ611B surface wall box. Wiring is straightforward with 12–18 AWG wire.

Key Specifications

• Nominal Voltage: 24 VDC (Range: 15–28 VDC)
• Standby Current: 0.15 mA | Active Current: 0.26 mA
• Contact Rating: 30 VDC, 2A
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Operating Humidity: 0–93% RH
• Dimensions: 120 × 120 × 45 mm | Weight: 255g
• Wiring: 12–18 AWG

Certifications: UL Listed (UL864) | FM Approved
