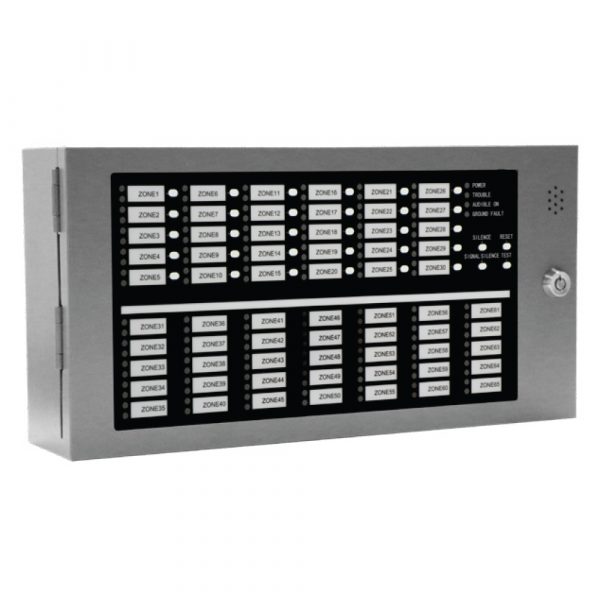

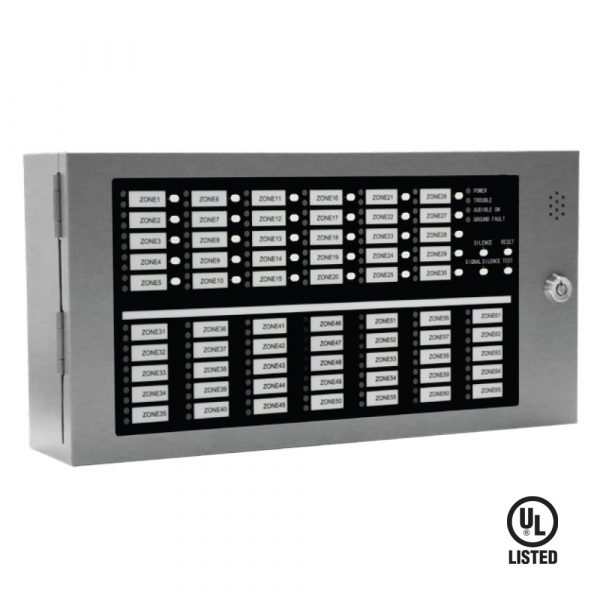

IQ600LA Remote LED Annunciator
The IQ600LA LED Annunciator is used to display zone events from the fire alarm control panel. The IQ600LA comes with a lockable glass door. A sliding paper strip is used to show zone messages. The IQ600LA can show up to 30 zones (2 LEDs + 1 button / zone) for alarm/trouble events display & control. lt also comes with 35 zones (2 LEDs / zone) for alarm/trouble events display. The LED annunciator includes separate status LEDs for power, general trouble, signal silence status, and ground fault. It also comes with push buttons to operate local buzzer silence, signal silence, events reset, and self-test. The IQ600LA is connected to the IQ600/IQ601 series panels via the external CAN network and it is powered by an external 24 VDC power source from the panel. The network can include up to a maximum of 20 remote LED annunciators.
Features
- 7” color LCD and a resolution of 800 X 480
- Events are displayed in different colors
- 6 function keys and 5 navigation keys
- 109 annunciators supported in the system
- 9 LED indicators and intuitive fire-alarm user interface
- Display annunciate up to 8 zones simultaneously
- Access door with lock
- *For indoor installation only
