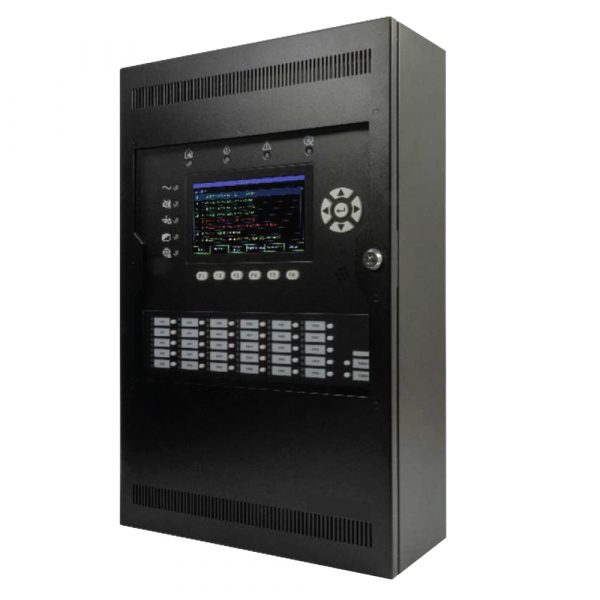

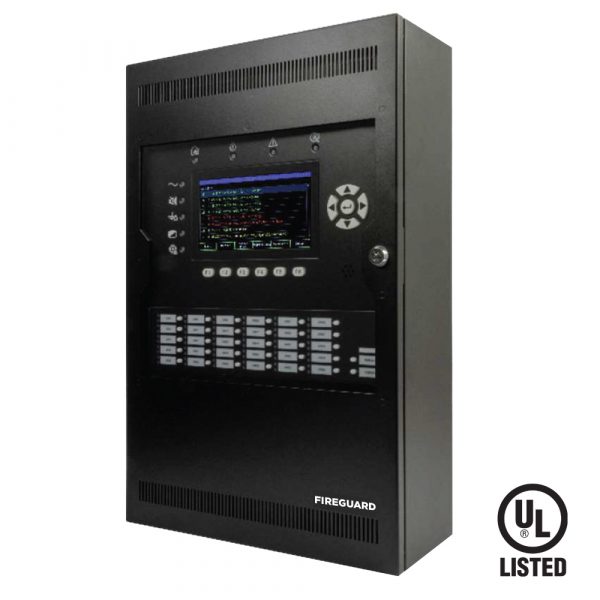

The IQ605 is an advanced addressable Fire Alarm Control Panel engineered for small to medium-sized commercial, institutional, and industrial facilities. Fully compliant with UL 864 10th edition, it is equally suited for new builds and retrofit applications, delivering powerful, scalable fire detection and notification in a modular design.

Intelligent Detection & Scalable Capacity
The IQ605 supports a single SLC loop accommodating up to 252 addressable devices, expandable to 4 loops for larger deployments. It handles up to 8 NACs (Class A or B), 5 Form C relay outputs, and connects to up to 109 remote panels or annunciators via CAN bus — making it a true hub for building-wide fire safety.

Intuitive Interface
A vivid 7″ colour LCD at 800×480 resolution, 9 LED indicators, 6 auxiliary function keys, and a built-in 30-zone LED/switch annunciator give operators instant, clear system visibility. Four levels of password protection ensure secure, role-based access.

Advanced Features

• Automatic sequential device addressing
• Positive alarm sequence to reduce false alarms
• Two-stage operation support
• Dual event logs: 1,000-alarm history and 5,000-event general log
• USB port for programming and firmware upgrades
• RJ45 and RS232 interfaces for third-party monitoring

Key Specifications

• Primary Supply: 110–120 VAC or 220–240 VAC (50/60Hz)
• Battery Backup: Up to two 40Ah sealed lead-acid batteries
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Operating Humidity: Up to 93% @ 32°C (90°F)
• Connections: 12–18 AWG
• Mounting: Surface or semi-flush wall mount

Certifications: UL Listed (UL 864 10th Edition)
