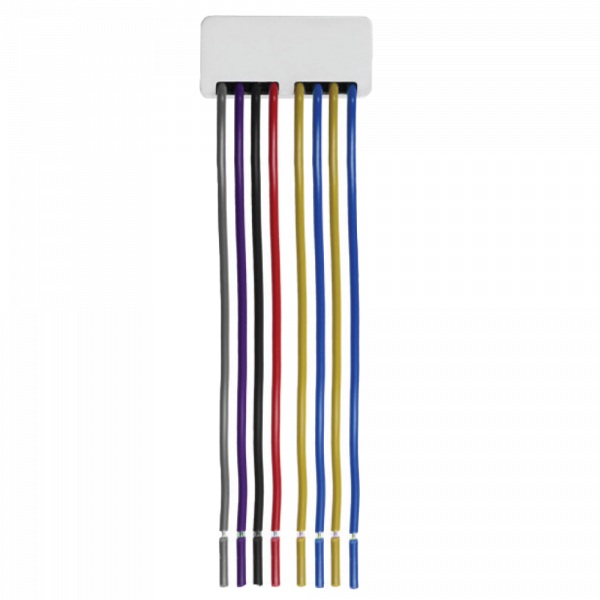

The IQ611MM is a compact addressable mini input module designed to monitor a single dry contact device within a fire alarm system. Built for discreet installation directly into a utility box adjacent to the monitored device, it takes one address on the Signalling Line Circuit (SLC) or Data Communication Link (DCL) — making it ideal for space-constrained installations where a full-size module is impractical.

Configurable Input & Clear Status Indication
The input contact type is fully configurable via the FACP attribute interface, allowing the IQ611MM to function as an alarm, supervisory, trouble, or monitor input — adapting to a wide variety of monitored device types. A remote red LED indicator provides clear status feedback, turning on steady to indicate an active event. Alarm events latch until a reset command is received; supervisory and monitor conditions are selectable as latched or non-latched; trouble is non-latched.

The input line is continuously supervised for open line and ground faults, with end-of-line resistor wiring required for full line monitoring.

Key Specifications

• Nominal Voltage: 24 VDC (Range: 15–28 VDC)
• Standby Current: 0.17 mA | Alarm Current: 0.80 mA
• Max. Line Impedance: 25 Ohms
• Max. Ground Fault Impedance: 6.6k Ohms
• Compatible EOLR: IQ-ELO-1 (0.6K Ohms)
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Operating Humidity: 0–93% RH
• Circuit Support: Class A/DCLA and Class B/DCLB

Certifications: UL Listed (UL864)
