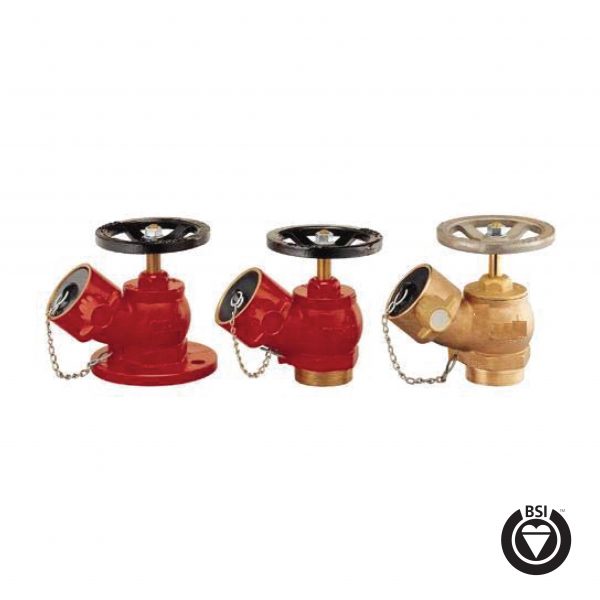

The Fireguard FG06 series are BSI-certified fire brigade landing valves manufactured to BS 5041 Parts 1 & 2, designed for use in wet and dry rising main systems in commercial, industrial, and high-rise building fire protection installations. Available in four pattern types across multiple inlet configurations and sizes, the range offers a comprehensive solution for virtually any riser installation requirement.

Four Pattern Types

• Oblique Type — For installations requiring angled flow direction
• Right-Angle Type — For 90° outlet configurations
• Bib-Nose Type — For compact, low-profile installations
• Horizontal Type — For straight-through horizontal installations

All valves are supplied with a 2½” BS336 instantaneous female outlet as standard, and are available with flanged or BSP screwed inlets to suit existing pipework.

Robust Construction
Bodies are cast from Bronze LG2 for exceptional corrosion resistance and longevity in wet environments. Grey cast iron handwheels conform to BS 1452, and all valves are tested to 22.5 bar — delivering reliable, long-term performance in demanding fire protection systems.

Key Specifications

• Body: Bronze LG2
• Handwheel: Grey cast iron to BS 1452
• Inlet: Flanged or BSP screw thread
• Outlet: Female instantaneous to BS336
• Test Pressure: 22.5 bar
• Flow Rate: 8.5 l/sec
• Nominal Size: 2½”
• Available Sizes: DN50 / DN65

Certifications: BSI Certified | BS 5041 Parts 1 & 2 Compliant
