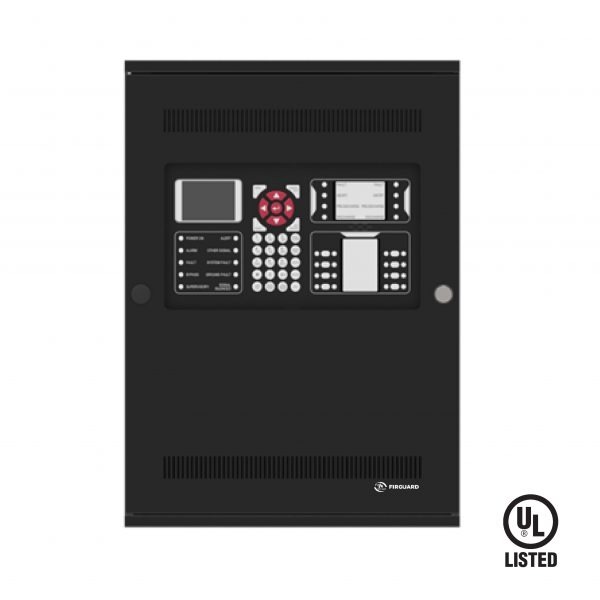

The IQ805 is an intelligent fire suppression control panel that can also function as an Intelligent Fire Alarm Control Panel (FACP) for small to medium-scale facilities. Suited to new and retrofit commercial, residential, institutional, and industrial applications, the panel supports up to 252 addressable devices on 1 SLC, 2 NACs, and three Form-C relays. With the addition of the FG2822 module, it supports dual hazardous agent releasing, meeting UL 864 requirements.

Key Features:

• 1 SLC supporting up to 252 addressable devices
• Up to 2 Notification Appliance Circuits (NACs)
• 3 Form-C dry relay contacts (Alarm, Trouble, Supervisory)
• Up to 2 releasing zones, minimum 8 input zones
• 2.8″ true color LCD, 29 input keys, 10 general LED indicators
• Ethernet and USB ports for local programming

Key Specs:

• Operating Temperature: 14°F to 131°F (-10°C to 55°C)
• Relative Humidity: 0–95% RH, non-condensing
• Power: 120V~ 60Hz 3.2A max, or 240V~ 50Hz 2.0A max (supervised)
• Battery: Two 12V lead-acid batteries in series, 55AH charging capacity (supervised)
• SLC Output: 26.1–27.3V, Class A/DCLA or Class B/DCLB
• NAC: 2 circuits, 24VDC regulated, Class A/DCLA or Class B/DCLB
• Relay Output: 3 Form C, 2A/30VDC, not supervised

Optional Accessories:

• External Battery Box (Model FG2131) — for batteries larger than 18AH
• LED Annunciator (Model FW2261) — supports up to 5 daughter cards (models FG2252-3 to FG2252-8) with varying LED/button/zone configurations

Compatible Devices: Smoke and heat detectors, manual release/abort stations, input/output/relay/isolator modules — full range available on request.

Approvals & Compliance:

• UL Approved — File S35910, Standard UL864
• Complies with NFPA 12, 12A, 12B, 2001, and NFPA 72 (Local and Remote Station Fire Alarm Systems)
