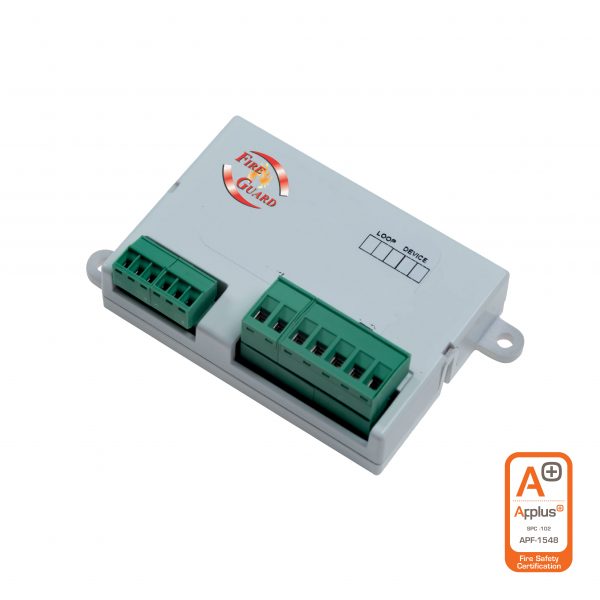

INPUT/OUTPUT ADDRESSABLE MODULE WITH SHORT CIRCUIT ISOLATOR
The FG901MI series of analogue multi-modules provides supervision and monitoring for auxiliary devices on a fire detection loop. Each module can be addressed manually via a programmer or automatically by the fire control panel — including on loops with “T” connections — with input channels monitoring rest/alarm/fault conditions and output channels available as monitored or form C type.
Each module includes an integrated short-circuit isolator, ensuring communication is not interrupted in the event of a loop or device fault, for greater system reliability.
Key Features:
- Applus certified to EN54-17 / EN54-18
- Integrated short-circuit isolator on every device
- Manual or auto-addressing with auto-mapping
- Up to 240 addresses per loop
- Three-colour LED status indication
- Matt white ABS housing, extractable terminal blocks (max. 2.5mm cable)
Model Range:
| Model | Description |
|---|---|
| FG901MIO3_AP | 3 supervised inputs + 1 supervised output |
| FG901MI3_AP | 3 inputs with short-circuit isolator |
| FG901MIO_AP | 1 input, 1 output form C, 1 supervised output |
| FG901MIO2_AP | 1 input, 2 form C outputs |
Key Specs (all models):
- Supply Voltage: 27V | Standby Consumption: 130µA @27V
- Operating Temperature: -5°C to +40°C | Humidity: 95% RH (no condensation)
- Dimensions: 106 x 54 x 27 mm | Weight: 100g
- Addresses on Loop: 3–4 (varies by model)
