FGMS ABORT AND RELEASE STATION
The FGMS Manual Pull Station is a high-quality, non-toxic die-cast pull station featuring a low-profile design with smooth edges. All components are prepainted or plated to inhibit corrosion, and the station offers a 10 Amp snap-action switch available in all contact arrangements, including gold contacts. It can be used with or without a break glass rod, with replacement requiring no special tools.
Key Features:
- Lift and pull operation with break glass cover
- Weather and explosion-proof versions available
- Hex screw or key lock access on all stations
- UL Listed
Construction:
- Painted die-cast housing with 14 Ga plated steel black plate
- Corrosion-inhibited surfaces
- Terminal block (4-position), single gang mounting
- 10A, 120VAC snap-action switch (S.P.S.T.)
Key Specs:
- Electrical Switch: 10A @ 120VAC
- Dimensions: 3.200 in (W) x 4.750 in (L) x 0.875 in (D)
- Weight/Mount: 15.5 oz / 420 grams, single gang
Model Range:
| Model | Description | Color |
|---|---|---|
| FGMS-1T | Manual Pull Station, Single Action | Red |
| FGMS-1T-LP | Manual Pull Station, Dual Action | Red |

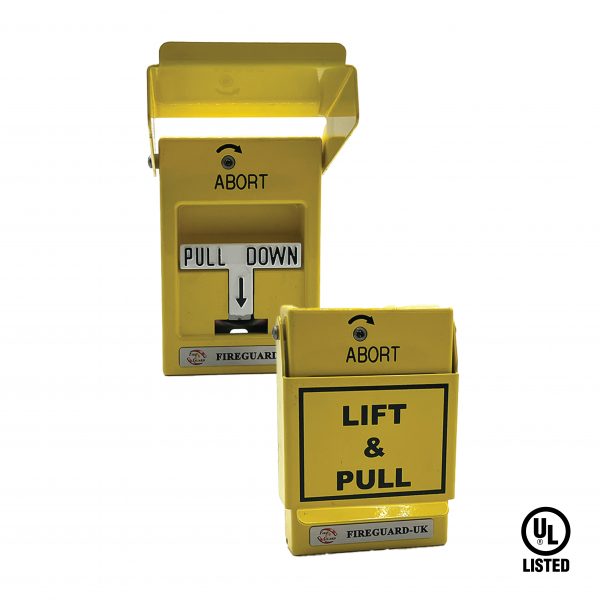

| FGMS-1T-LP(Y) | Manual Pull Station, Dual Action | Yellow |

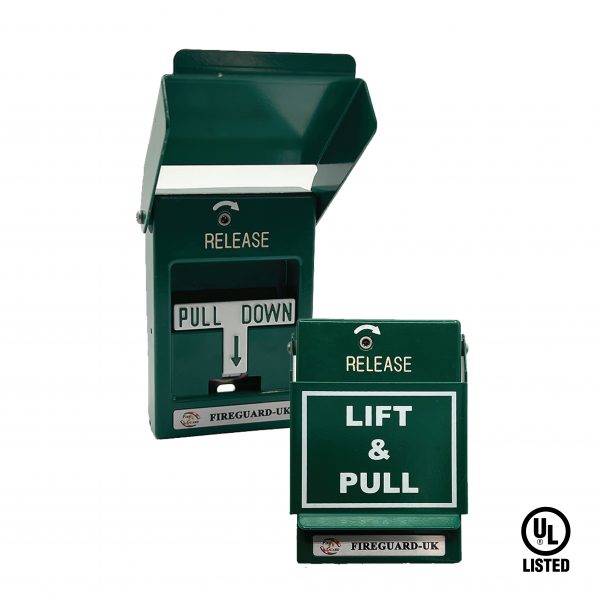

| FGMS-1T-LP(G) | Manual Pull Station, Dual Action | Green |
