FG901SB / FG901SBFR Sounder Base
The FG901SB series are low-profile loop-powered sounder bases designed to mount directly beneath addressable detectors, combining notification and detection in a single discreet unit. Operating across a wide 16–40V DC input range, they deliver powerful, versatile audible alerting while protruding just 28mm from the ceiling — virtually unnoticeable until it matters most.
Two Models Available

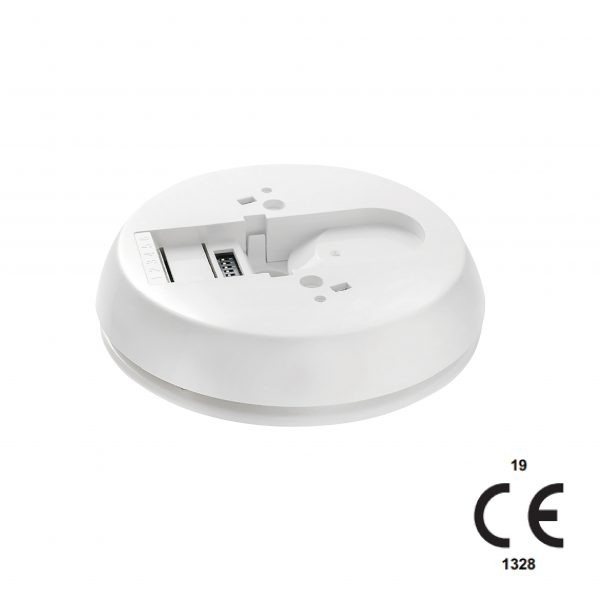

The FG901SB_AP is the standard loop-powered sounder base, offering 32 primary and 32 alternative tones with 4 locally adjustable volume levels and sound output up to 92 dBA. Its acoustically optimised low-profile shape delivers omnidirectional coverage at ultra-low current draw.

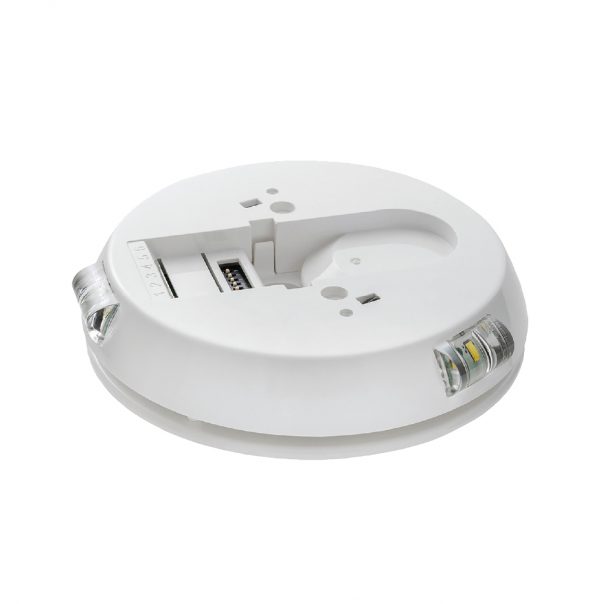

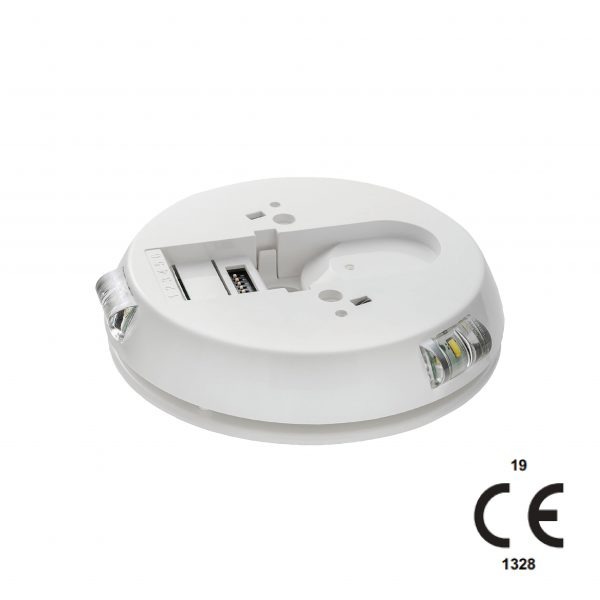

The FG901SBFR_AP builds on this with an integrated VAD (Visual Alarm Device) beacon, adding a synchronised LED flash at 0.5Hz for visual notification alongside the audible alarm — ideal for environments requiring combined audible and visual alerting.
Key Features (both models)
- Operating Voltage: 16–40V DC
- Sound Output: Up to 92 dBA
- Tones: 32 primary + 32 alternative
- 4 locally selectable volume levels
- Optical coverage level indicator
- Ultra-low current consumption
- Profile: 28mm wall/ceiling protrusion
- Colour: White | Construction: Solid state electronics
FG901SBFR_AP additional feature: Synchronised LED flash at 0.5Hz
Certifications: CE Marked (1328)
