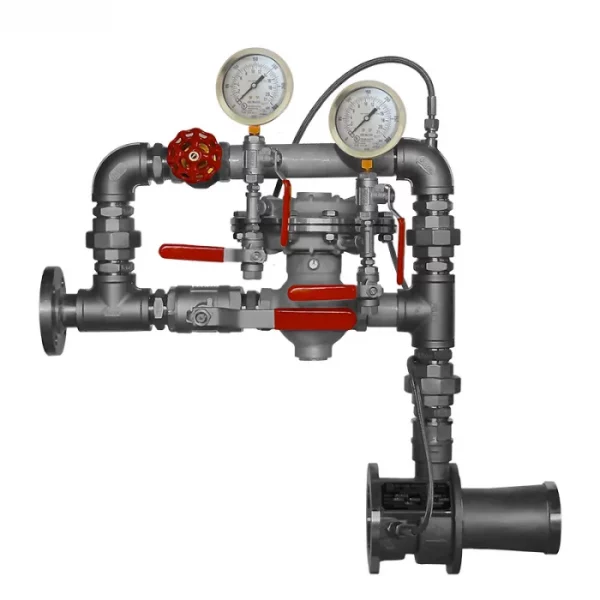

INLINE BALANCE PRESSURE FOAM PROPORTIONER
A precision foam proportioning system designed for use with a positive displacement foam concentrate supply pump and atmospheric foam concentrate storage tank. The Inline Balance Pressure Foam Proportioner accurately controls the injection of foam concentrate into the water stream across a wide range of flow rates and pressures, ensuring consistently proportioned foam solution regardless of system demand.
Ideal for installations requiring simultaneous operation at multiple foam injection points — even where pressures differ between injection locations — with a single concentrate supply line. Multiple sizes can be combined to suit the specific flow requirements of each hazard area.
Key Specs:
- Models: IB (Bronze, IS 318/ASTM B62) | IBS (Stainless Steel 304, ASTM A351-CF8)
- Sizes: 80NB, 100NB, 150NB
- Max Service Pressure: 14 Bar (200 PSI)
- Min Working Pressure: 3.0 Bar (44 PSI)
- Factory Hydrostatic Test: 25 Kg/sq.cm (350 PSI)
- Flange Connection: ANSI B16.5 – 150#
- Pressure Sensing Hose: PTFE tube with stainless steel braided cover
- Finish: Epoxy red painted
Ratio Controller Flow Range:
| Size | AFFF 3% (LPM) | AR-AFFF 3/3% (LPM) |
|---|---|---|
| 80NB | 260 to 3,000 | 680 to 2,900 |
| 100NB | 650 to 6,000 | 1,400 to 5,800 |
| 150NB | 1,200 to 12,000 | 2,750 to 11,600 |
Requires foam concentrate supply pressure of 1.5–2.0 bar above water supply pressure. Compatible with AFFF and AR-AFFF foam concentrates. Manual balancing valve included as standard.
