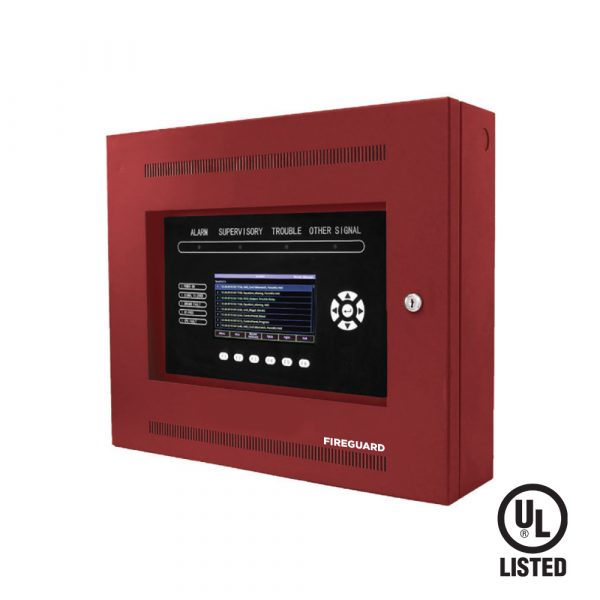

Fireguard IQ601 is an Addressable Fire Alarm Control Panel designed for small to medium-scale facilities. It is ideally suited for both new and retrofit commercial, institutional, and industrial fire detection and notification applications IQ601 is a state‐of‐the‐art addressable fire control system that meets the requirements of UL864 10th edition. It supports 1 Addressable Signaling Line Circuits of 252 addressable devices/points. It also has a capacity of 2 to 4 Notification Appliance Circuits and 4+1 form C dry relay contacts (4 relays are used for Fire Department connection). The IQ601 has a 7’’ LCD with 800 X 480 resolution, 6 auxiliary function keys, and 9 LED indicators, making it a highly intuitive fire alarm user interface. It can be connected to 109 remote Panels and Annunciators via an external network to form a fire emergency detection and notification network system. Chassis in red and grey colors are provided. Order the preferred color following the ordering information table

Features

• 1 intelligent Signaling Line Circuit (SLC) Class A or B, with no limit on the number of zones.
• Up to 252 detectors and devices (modules, addressable call point, or addressable horn strobe per SLC;
• Automatic addressing function: In Automatic mode, the panel sequentially assigns addresses from 1 to 252 to loop devices. Loop spots can be any mix of detector, module, call point, or addressable horn strobe
• PC configuration software.
• In “walk test mode” detectors are triggered to alarm by an aerosol generator, and the linked alarm devices are triggered simultaneously.
• Loop break locating: The panel will display the loop and point address where the break has occurred.
• 7 LCD with 800 x 480 resolution.
• 4+1 form C dry relay contacts (4 relays are used for Fire Department connection, non-programmable), 1 programmable
• 6 programmable auxiliary function keys
• 9 LED indicators, making it a highly intuitive fire alarm user interface.
• Standard network for up to 109 nodes (The sum of panel and annunciator is not more than 109).
• Connection with one IQI 51 digital communication panel with IQ600E network card.
• RJ45 and RS232 interface available for output to third-party monitoring software.
• 5000 event log and compatible with EPSON LX350 printer
