Vane-Type Waterflow Detector – VTWS (Saddle) / VTWT (Threaded)
Fireguard vane-type waterflow detectors are compatible with schedule 10 through 40 steel pipe, sizes 2 through 8 inch, and can be mounted in vertical or horizontal position. Available in saddle type (VTWS) or threaded type (VTWT) connection, both consist of a rugged, NEMA 3-rated enclosure suited to indoor and outdoor use across a wide temperature range. UL Listed models feature tamper-resistant cover screws, and inside, two sets of SPDT (Form C) synchronized switches are enclosed in a durable terminal block for reliable performance. A mechanical retard feature minimizes false alarms caused by pressure surges or trapped air in the sprinkler system, with a sealed design immune to dust and contaminants. Both the retard mechanism and dual SPDT switches are field-replaceable.
Key Features:
- Two-inch mounting hole provided
- UL-Listed models NEMA 3 rated, FM Approved
- Sealed retard mechanism, immune to dust and contaminants
- Visual switch activation
- Field-replaceable retard mechanism and SPDT switches
- Accommodates up to 12 AWG wire
- Designed for indoor and outdoor use
- 100% synchronization activates both alarm panel and local bell
- Tamper-resistant cover screw
- Directional notched cover indicates flow direction from multiple viewing angles
Key Specs (both types):
- Contact Rating: 10A @125/250VAC | 3A @24VDC
- Flow Rate: 15 to 37.8 L/min (4 to 10 gpm)
- Static Pressure Rating: 31 bar (450 psi)
- Operating Temperature Range: 32°F to 155°F (0°C to 68°C)
- Shipping Weight: 1kg
- Compatible Pipe: Steel pipe, schedule 10 through 40

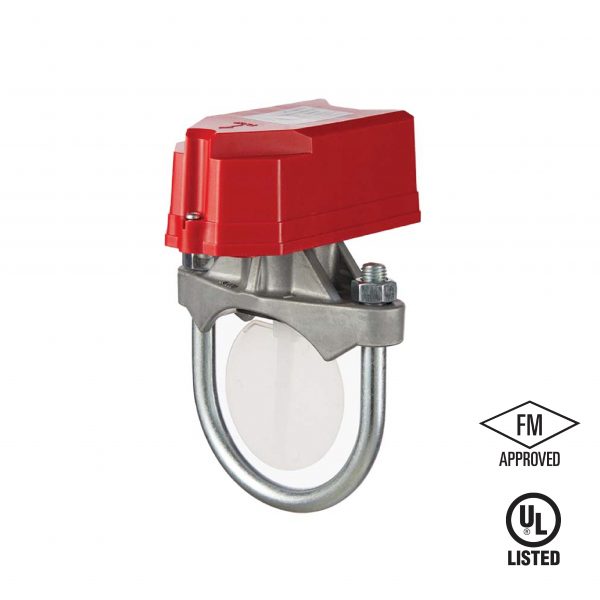

VTWS (Saddle Type) – Model Range:
| Model | Nominal Pipe Size | Rated Working Pressure |
|---|---|---|
| VTWS50 | 50mm (2″) | 31 bar (450 psi) |
| VTWS65 | 65mm (2½”) | 31 bar (450 psi) |
| VTWS80 | 80mm (3″) | 31 bar (450 psi) |
| VTWS100 | 100mm (4″) | 31 bar (450 psi) |
| VTWS125 | 125mm (5″) | 31 bar (450 psi) |
| VTWS150 | 150mm (6″) | 31 bar (450 psi) |
| VTWS200 | 200mm (8″) | 15.5 bar (225 psi) |

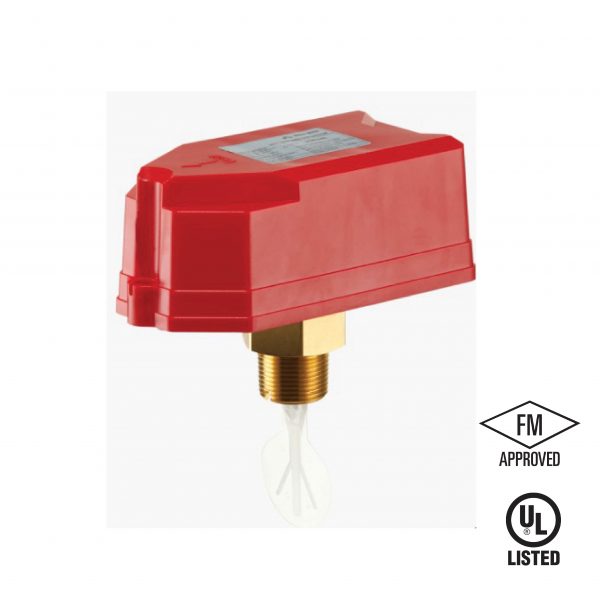

VTWT (Threaded Type) – Model Range:
| Nominal Size | Threaded (in) | Tee Depth (in) |
|---|---|---|
| DN25 (1″) | 1 x 1 x 1 | 2⅛ |
| DN32 (1¼”) | 1¼ x 1¼ x 1 | 2½ |
| DN40 (1½”) | 1½ x 1½ x 1 | 2¾ |
| DN50 (2″) | 2 x 2 x 1 | 3¼ |
Note: Common and B-NO connections close when the vane is deflected (i.e., when water is flowing). Dual switches permit combined applications on a single detector.
