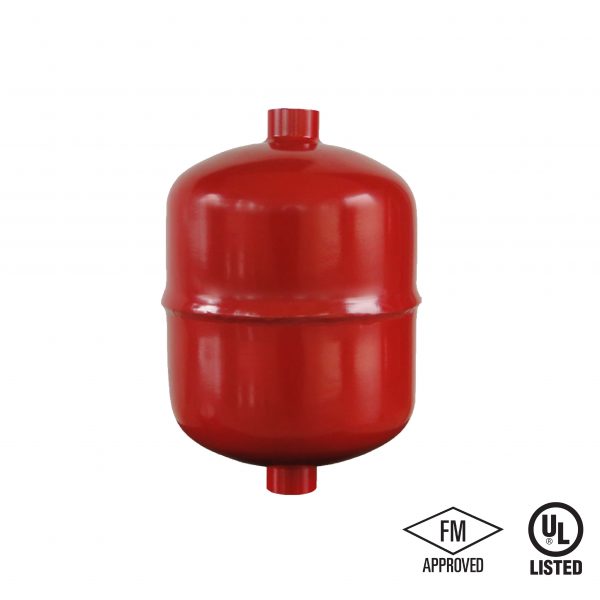

RETARD CHAMBER
UL Listed and FM Approved retard chamber designed for use with alarm valve trim in systems where variable water pressure is anticipated. Acting as a holding tank, the RC9 prevents false alarms triggered by pressure surges while ensuring the sprinkler alarm activates reliably during a sustained water flow event.
Connected between the alarm valve port and the sprinkler alarm via a restriction nozzle assembly, the chamber fills only when flow exceeds the drain nozzle capacity — allowing the alarm and pressure switch to activate with confidence. Constructed from stainless steel for long-term durability and corrosion resistance.
Key Specs:
- Model: RC9
- Material: Stainless Steel
- Connection: 3/4″ BSPT (F)
- Rated Pressure: 17 bar (250 PSI)
- Weight: 2.6 Kg
- Approvals: UL Listed & FM Approved
Compatible with Model H Alarm Valve. Must be installed in accordance with NFPA standards. The restriction nozzle orifice and screen should be inspected and cleaned regularly to prevent blockage.
