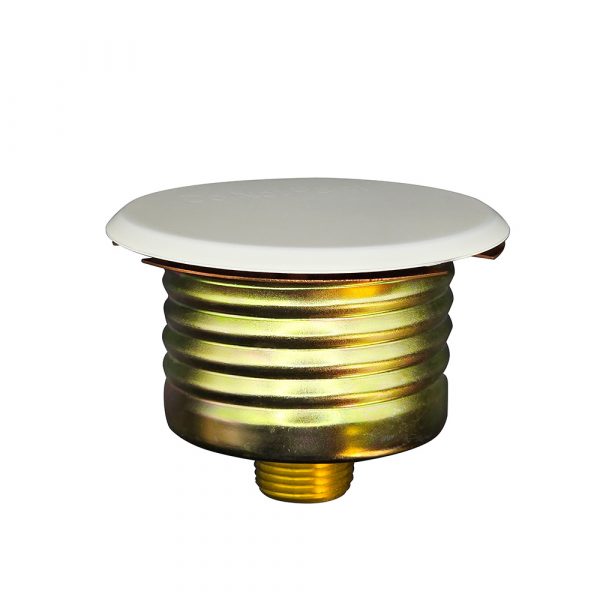

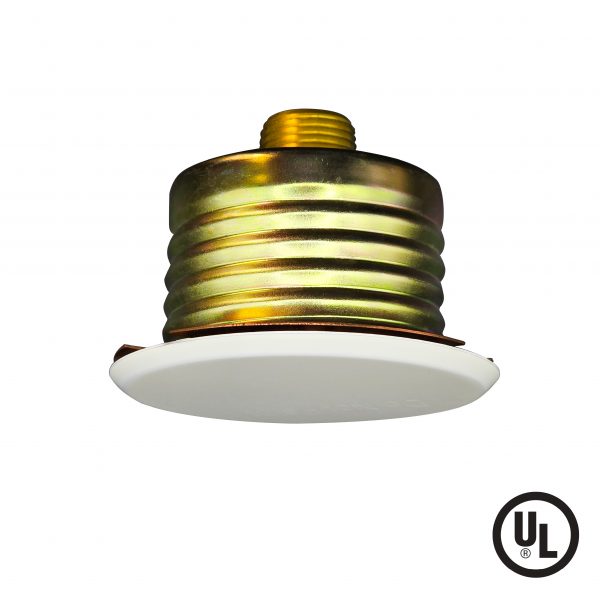

CONSEALED SPRINKLER
Model No. FA019 & FA020
UL Listed concealed pendant automatic glass bulb fire sprinklers featuring a 5.6 K-factor with flat plate concealed design for discreet ceiling installations. Model FA019 offers Standard Response with a 5mm glass bulb, while Model FA020 provides Quick Response with a 3mm glass bulb for faster activation in fire emergencies. Suitable for standard coverage applications in commercial and residential settings.
Product Overview
The Series FA019 and FA020 fire sprinklers are designed for discreet ceiling installations and are activated when exposed to heat from a fire. The sprinkler’s soldered cover plate detaches at its rated temperature, exposing the glass bulb to heat. As the bulb heats, internal fluid expands and compresses the air bubble within. Once maximum compression is reached, the pressure breaks the glass bulb, triggering water discharge to suppress the fire.
Key Features
- Model FA019: Standard Response sprinkler with 5mm glass bulb
- Model FA020: Quick Response sprinkler with 3mm glass bulb for faster activation
- Flat plate concealed design for aesthetic ceiling integration
- UL Listed for both models
- Multiple temperature ratings and cover plate finishes available
Technical Specifications
|
Feature |
FA019 |
FA020 |
|---|---|---|
|
SIN |
FA019 |
FA020 |
|
Style |
Concealed Pendent |
Concealed Pendent |
|
K Factor |
5.6 (80 metric) |
5.6 (80 metric) |
|
Flow Rategpm/(psi)½(L³/min(bar)½) |
5.6 (80 metric) |
5.6 (80 metric) |
|
Nominal Pressure |
1/2″ NPT OR 1-2″ BSPT |
1/2″ NPT OR 1-2″ BSPT |
|
Max. Working Pressure |
175 PSI (12BAR) |
175 PSI (12BAR) |
|
Response |
STANDARD |
QUICK |
|
Factory Test Pressure |
500 PSI (35BAR) |
500 PSI (35BAR) |
|
Min. Operating Pressure |
7 PSI(0.5 BAR) |
7 PSI(0.5 BAR) |
|
Cover Plate Finishes |
White Coating, Chrome, Bright Brass, Brass & Custom |
White Coating, Chrome, Bright Brass, Brass & Custom |
Sprinkler Material Components
|
Part |
Material |
|---|---|
|
Load Screw |
DZR Brass |
|
Bulb Seat |
Brass |
|
Frame |
DZR Brass |
|
Seal |
Beryllium Nickel w/Teflon |
|
Deflector |
Bronze |
|
Support Cup |
Steel |
|
Guide Pins |
Stainless Steel 316 |
|
Cover Plate |
H162 Brass |
|
Skirt |
Brass |
|
Ejection Spring |
C5191 |
Temperature Ratings
|
SIN |
K-Factor |
135°F (57°C)Cover Plate |
155°F (68°C)Cover Plate |
165°F (74°C)Cover Plate |
200°F (93°C)Cover Plate |
|---|---|---|---|---|---|
|
|
|
135°F (57°C)Sprinkler |
155°F (68°C)Sprinkler |
175°F (79°C)Sprinkler |
200°F (93°C)Sprinkler |
|
FA019/FA020 |
5.6 |
Y |
Y |
Y |
Y |
⚠️ CAUTION:
- Do not exceed 14 ft-lb torque for 1/2 inch NPT sprinkler threads
- Keep protective cap on until system is placed in service
- Do not wrench any part other than the sprinkler body
- In case of thread leak, remove unit, apply new compound/tape and re-install
