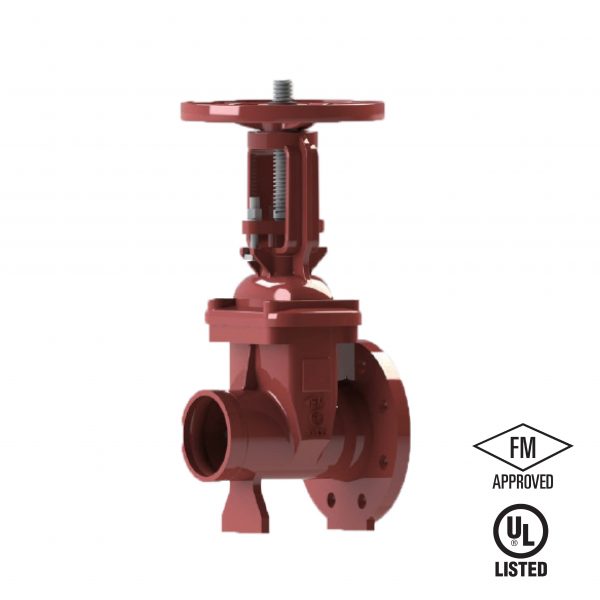

OS&Y GATE VALVE FGO138-300
UL Listed and FM Approved resilient seated outside screw and yoke (OS&Y) gate valve with flanged x grooved end configuration, conforming to AWWA C515 and BS5163 with fusion bonded epoxy coating compliant with AWWA C550. The 300 PSI rated counterpart to the FGO138-365, offering the same flanged-groove connection flexibility across a full size range from 50mm (2″) to 300mm (12″) and compatible with a wide range of international connection standards.
Key Specs:
- Working Pressure: 300 PSI
- Working Temperature: -10°C to 120°C
- Valve Standard: AWWA C515 / BS5163 | Coating: AWWA C550
- Connection Ends: ANSI B16.1 Class 125 / B16.42 Class 150, EN1092-2 PN16, AWWA C606, VDS2100/AS2638.2
- Sizes: 50mm to 300mm (2″ to 12″)
- Approvals: UL Listed & FM Approved
Materials:
| Part | Material |
|---|---|
| Body | Ductile Iron (A536 65-45-12) |
| Wedge | Ductile Iron, EPDM Coated |
| Wedge Nut | Stainless Steel (AISI 304) |
| Stem | Stainless Steel (AISI 304/420) |
| Bonnet | Ductile Iron (A536 65-45-12) |
| Gasket | EPDM |
| Packing | PTFE (Non-asbestos) |
| Stem Nut | Bronze (ASTM B62) |
| Handwheel | Ductile Iron (A536 65-45-12) |
Flanged x grooved end configuration with rising OS&Y stem at 300 PSI — suits installations requiring transition between flanged and grooved pipework with broad international standard compatibility.
