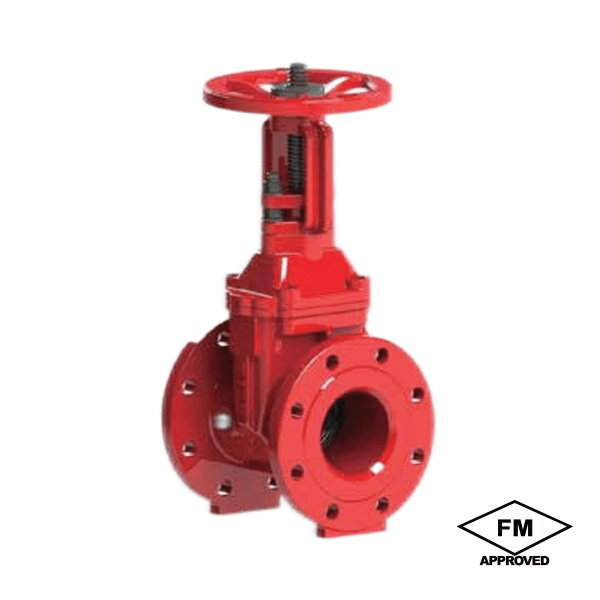

Resilient Seated OS&Y Type, Flanged Ends FGO907-365
UL Listed and FM Approved resilient seated outside screw and yoke (OS&Y) gate valve with mechanical joint ends, conforming to AWWA C515 and BS5163 with fusion bonded epoxy coating compliant with AWWA C550. Designed for fire protection and water supply applications, the FGM939-365 delivers reliable isolation across a wide range of pipe sizes from 80mm (3″) to 300mm (12″).
Key Specs:
- Working Pressure: 365 PSI
- Working Temperature: -10°C to 120°C
- Valve Standard: AWWA C515 / BS5163 | Coating: AWWA C550
- Connection Ends: AWWA C606 / ANSI/AWWA C111/A21.11-00
- Sizes: 80mm to 300mm (3″ to 12″)
- Approvals: UL Listed & FM Approved
Materials:

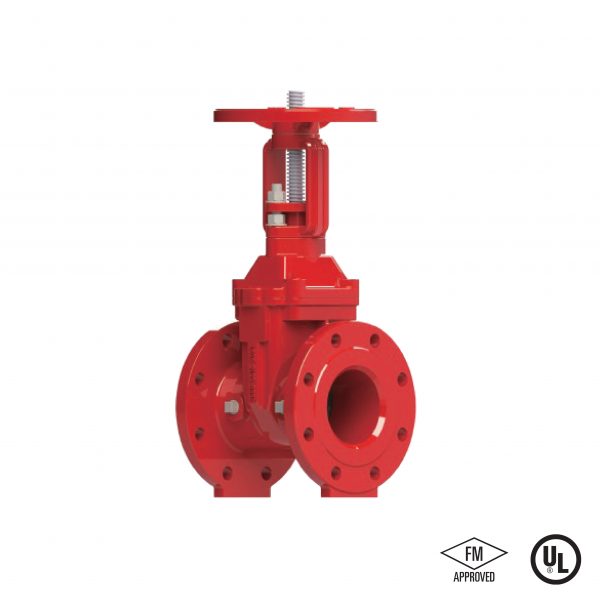

UL Listed and FM Approved resilient seated outside screw and yoke (OS&Y) gate valve with flanged ends, conforming to AWWA C515 and BS5163 with fusion bonded epoxy coating compliant with AWWA C550. The FGO907-365 is the flanged end counterpart to the FGM939-365, offering the same proven resilient seated design across a wider size range from 50mm (2″) to 300mm (12″), compatible with both ANSI and EN flange standards.
Key Specs:
- Working Pressure: 365 PSI
- Working Temperature: -10°C to 120°C
- Valve Standard: AWWA C515 / BS5163 | Coating: AWWA C550
- Connection Ends: ANSI 125/150 / EN 1092-2 PN16
- Sizes: 50mm to 300mm (2″ to 12″)
- Approvals: UL Listed & FM Approved
Materials:
| Part | Material |
|---|---|
| Body | Ductile Iron (A536 65-45-12) |
| Wedge Disc | Ductile Iron, EPDM Coated |
| Stem | Stainless Steel (AISI 304) |
| Disc Nut | Bronze (ASTM B62) |
| Bonnet | Ductile Iron (A536 65-45-12) |
| Thrust Collar | Bronze (ASTM C51100) |
| Gasket | EPDM |
| Gland | Ductile Iron (A536 65-45-12) |
