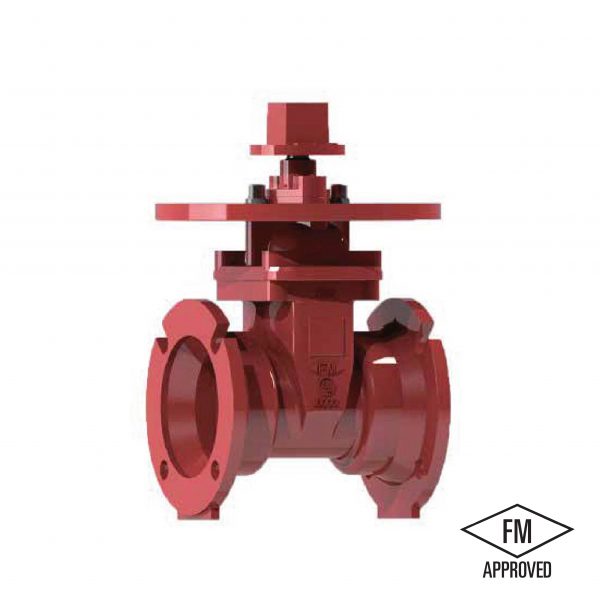

Resilient Seated NRS Type-Flanged-MJ Ends FGFM939-300
FM Approved resilient seated non-rising stem (NRS) gate valve with flanged x mechanical joint end configuration, conforming to AWWA C515 and BS5163 with fusion bonded epoxy coating compliant with AWWA C550. The combination flanged-MJ design offers flexibility for transitioning between flanged and mechanical joint pipework within the same installation, while the compact NRS profile suits buried or space-constrained applications.
Key Specs:
- Working Pressure: 200 / 250 / 300 PSI
- Working Temperature: -10°C to 120°C
- Valve Standard: AWWA C515 / BS5163 | Coating: AWWA C550
- Connection Ends: AWWA C153/A21.11, ANSI B16.1 Class 125 / B16.42 Class 150, EN1092-2 PN16
- Sizes: 80mm to 300mm (3″ to 12″)
- Approval: FM Approved
Materials:
| Part | Material |
|---|---|
| Body | Ductile Iron (A536 65-45-12) |
| Wedge Disc | Ductile Iron, EPDM Coated |
| Stem | Stainless Steel (AISI 304/420) |
| Disc Nut | Bronze (ASTM B62) |
| Bonnet | Ductile Iron (A536 65-45-12) |
| Thrust Collar | Bronze (ASTM C51100) |
| Gasket | EPDM |
| Gland | Ductile Iron (A536 65-45-12) |
Flanged x MJ end configuration with non-rising stem design — supports flexible connection between flanged and mechanical joint pipework. Compatible with ANSI and EN flange standards.
