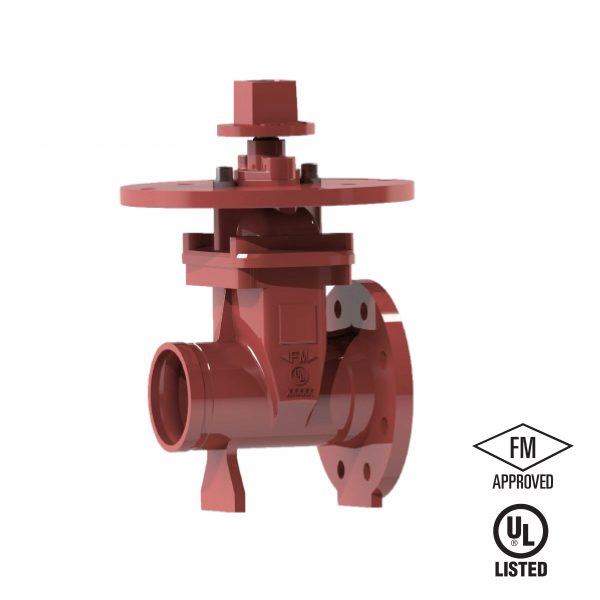

NRS GATE VALVE FGN108-300
UL Listed and FM Approved resilient seated non-rising stem (NRS) gate valve with flanged x grooved end configuration, conforming to AWWA C515 and BS5163 with fusion bonded epoxy coating compliant with AWWA C550. Similar to the FGN105-300 but with broader international flange standard compatibility including ANSI and EN connections in addition to grooved end standards, making it a more versatile option for multi-standard installations.
Key Specs:
- Working Pressure: 300 PSI
- Working Temperature: -10°C to 120°C
- Valve Standard: AWWA C515 / BS5163 | Coating: AWWA C550
- Connection Ends: ANSI B16.1 Class 125 / B16.42 Class 150, EN1092-2 PN16, AWWA C606, VDS2100/AS2638.2
- Sizes: 50mm to 300mm (2″ to 12″)
- Approvals: UL Listed & FM Approved
Materials:
| Part | Material |
|---|---|
| Body | Ductile Iron (A536 65-45-12) |
| Wedge Disc | Ductile Iron, EPDM Coated |
| Disc Nut | Bronze (ASTM B62) |
| Stem | Stainless Steel (AISI 304/420) |
| Bonnet | Ductile Iron (A536 65-45-12) |
| Thrust Collar | Bronze (ASTM C51100) |
| Gasket | EPDM |
| Gland | Ductile Iron (A536 65-45-12) |
| Wrench Nut | Ductile Iron (A536 65-45-12) |
Flanged x grooved end NRS gate valve with broader flange standard compatibility than the FGN105-300 — suited to international projects requiring ANSI, EN, and grooved connection standards within the same installation.
