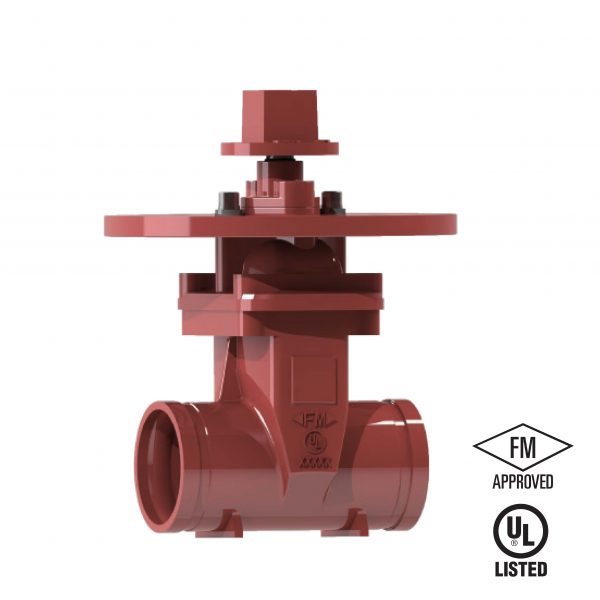

NRS GATE VALVE FGN105-300
UL Listed and FM Approved resilient seated non-rising stem (NRS) gate valve with flanged x grooved end configuration, conforming to AWWA C515 and BS5163 with fusion bonded epoxy coating compliant with AWWA C550. The compact NRS design combined with flanged-groove end connections makes the FGN105-300 well suited to space-constrained or buried installations requiring transition between flanged and grooved pipework systems.
Key Specs:
- Working Pressure: 300 PSI
- Working Temperature: -10°C to 120°C
- Valve Standard: AWWA C515 / BS5163 | Coating: AWWA C550
- Connection Ends: AWWA C606, VDS2100/AS2638.2
- Sizes: 50mm to 300mm (2″ to 12″)
- Approvals: UL Listed & FM Approved
Materials:
| Part | Material |
|---|---|
| Body | Ductile Iron (A536 65-45-12) |
| Wedge Disc | Ductile Iron, EPDM Coated |
| Disc Nut | Bronze (ASTM B62) |
| Stem | Stainless Steel (AISI 304/420) |
| Bonnet | Ductile Iron (A536 65-45-12) |
| Thrust Collar | Bronze (ASTM C51100) |
| Gasket | EPDM |
| Gland | Ductile Iron (A536 65-45-12) |
| Wrench Nut | Ductile Iron (A536 65-45-12) |
Flanged x grooved end configuration with non-rising stem (NRS) — suited to space-constrained or underground installations requiring transition between flanged and grooved pipework.
