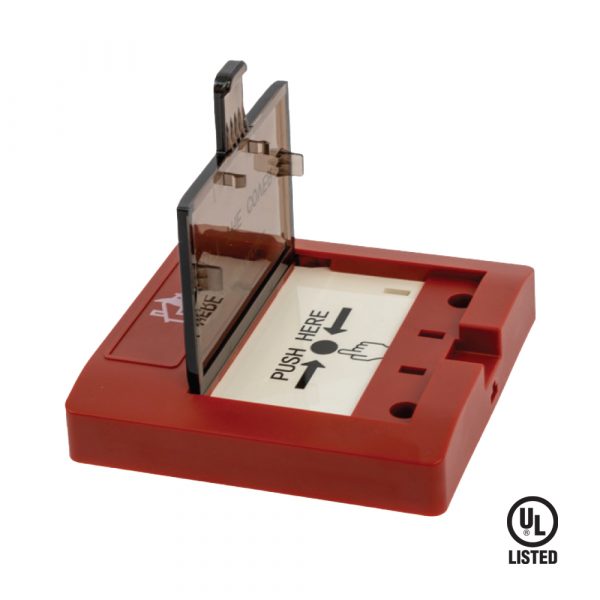

Conventional Manual Pull Station IQ632
The IQ632 is a reliable, UL-listed conventional manual pull station designed for indoor fire alarm systems. Built to UL 38 standards for Fire Protective Signaling Systems, it meets ADA requirements with a maximum 5 lb activation force — making it accessible and code-compliant for a wide range of commercial and public buildings.
Simple to Activate, Easy to Reset
In the event of a fire, simply lift the cover and press the button to trigger an alarm signal. A red LED illuminates instantly to confirm activation. Resetting the station is straightforward using the included switch key.
Built to Last
Constructed from durable materials and solid components, the IQ632 is engineered for long-term, dependable performance in demanding environments.
Key Specifications
- Operating Voltage: 12–33 VDC
- Operating Current: 150 mA max.
- Operating Temperature: 0°C to 49°C (32°F to 120°F)
- Humidity: 0–93% RH (non-condensing)
- Dimensions (with base): 120 × 120 × 54 mm
- Weight: 237 g
- Wiring: 12–18 AWG
Easy Installation
Compatible with the IQ621B base and standard 2×4 or 4×4 electrical boxes, the IQ632 installs quickly with no polarity concerns on the terminal wiring.
Certifications: UL Listed (UL 38) | ADA Compliant
