Indicator Post Underground Type FGVI345

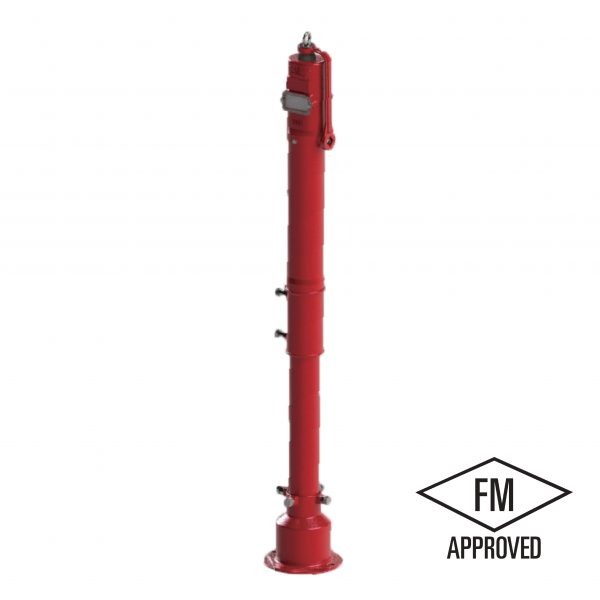

FIREGUARD FGVI345 Underground Indicator Post
The FIREGUARD FGVI345 is an FM Approved underground-type indicator post engineered for precise valve position monitoring across a wide range of pipe sizes — from 2″ up to 12″. Built with an ASTM A536 ductile iron body and SS304 stainless steel hardware, it’s designed to perform reliably in harsh underground conditions with minimal maintenance.
Clear “OPEN” and “SHUT” indicators are visible through a UV-stabilized Lexan window, providing instant visual confirmation of valve status above ground. The dual lower barrel design and adjustable standpipe make it adaptable to varying burial depths, with field trimming requiring no special tools.
With a broad size range and straightforward four-step field adjustment, the FGVI345 suits a variety of fire protection installations from small distribution lines to large-diameter mains.
Key Features:
- FM Approved
- Available sizes: 2″ – 12″
- Adjustable bury depth: 623mm – 1898mm (size dependent)
- Lexan UV-stabilized window
- EPDM dust cap and seal ring
- Ductile iron body (ASTM A536 65-45-12)
- SS304 stainless steel operating components
Suitable for municipal, industrial, and commercial fire suppression systems requiring versatile underground valve monitoring.
