Fireguard fire hose reels provide a fast, efficient, and steady flow of water for firefighting, supplied with either a manual or automatic valve depending on the installation environment. Manual reels are recommended for exposed or exterior areas subject to frost, since water isn’t present in the hose until the gate valve is opened. Automatic reels stay permanently charged with water, so a quick twist of the nozzle discharges water immediately — saving valuable time in stopping a small fire before it grows. Available in fixed, swinging, recessed, and concealed versions, with automatic or manual valves.

Key Features:

• Designed to BS EN 671 Part 1-2001
• Discs: 1.2mm pre-treated Electra Galvanized steel with electrostatic powder coating
• Maximum swinging angle (wall mounted): 180°
• Hose designed to BS EN 694, non-kinking reinforced rubber
• Jet spray nozzle, rigid plastic, >45° spray angle (Shut-Spray-Jet pattern N-04)
• 1″ gate valve (brass) or ball valve; lockshield valve optional
• Takes 20/25/30m of 19mm or 25mm hose
• LPCB certified, UKAS and BSI Kitemark approved

Key Specs:

• Hose Working Pressure: 12 or 20 Bar
• Hose Burst Pressure: 42 or 60 Bar
• Hose Test Pressure: 18 Bar / 48-55 / 52-62
• Nozzle Orifice Size: 7mm (normal nozzle range N-01 to N-15 available)

Model Range:

Optional stainless steel drum available. U-Bracket supplied for wall-mounted installation (not required for cabinet-mounted reels, which use welded supports).

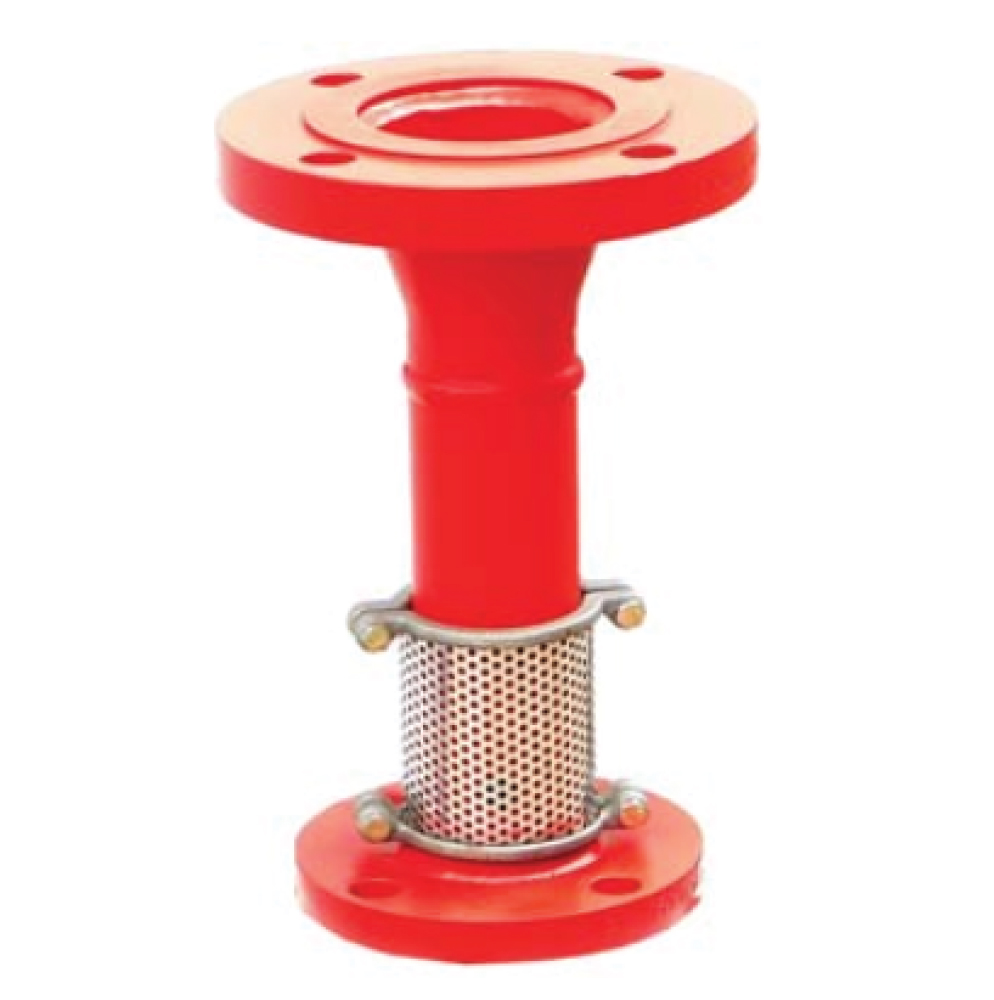

Applications: Schools, warehouses & workshops, hotels, theatres & concert halls, car parks, factories, and large petrochemical areas (with foam attachment).
