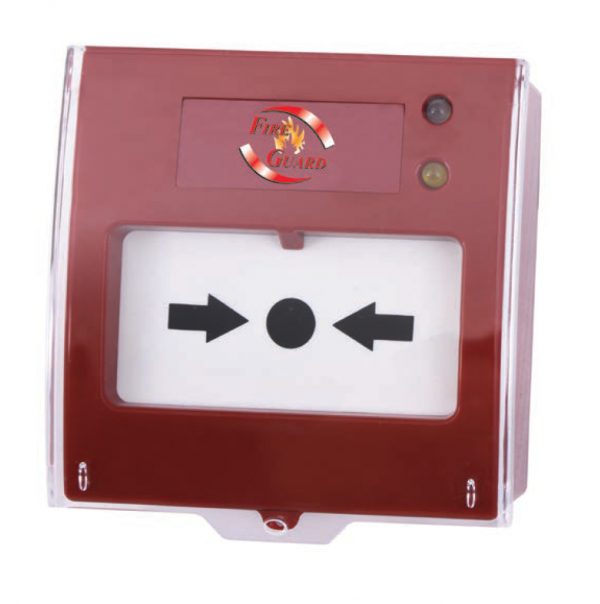

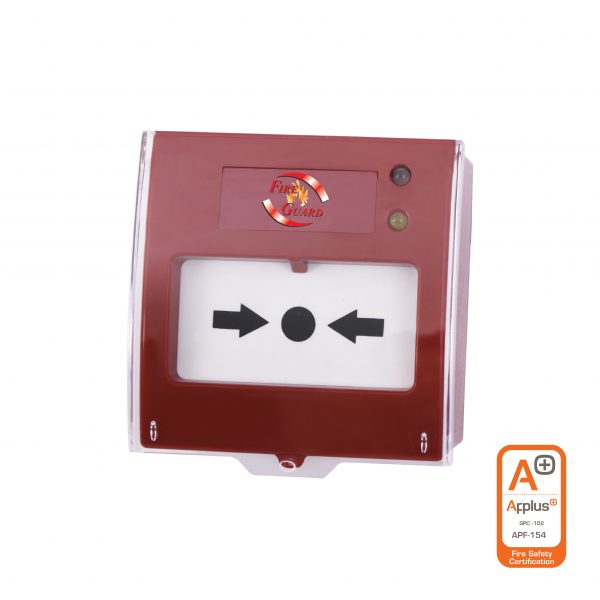

The FG901MCP_AP is an intelligent analogue addressable manual call point designed to integrate seamlessly with fire detection control panels equipped with the ONEPROTOCOLL protocol. Built from robust red ABS with a front-mounted three-colour LED and key-resettable activation, it delivers reliable manual fire alarm initiation with the precision of addressable technology.

Integrated Isolator for Uninterrupted Communication
Every FG901MCP_AP includes a built-in short-circuit isolator conforming to EN54-17, ensuring that a fault on the loop or a single device does not interrupt communication with the rest of the system — maintaining full network reliability at all times.

Flexible & Easy to Install
Addressing is carried out via programmer or auto addressing through the control panel — no DIP or rotary switches needed. Auto addressing supports “T” connection topologies, and a removable terminal block accommodates cables up to 2.5mm² for straightforward wiring. An optional transparent protective cover is also available.

Key Specifications

• Supply Voltage: 27V
• Standby Current: 120 µA | LED Current: 6 mA
• Loop Capacity: Up to 240 devices over 2km cable
• Operating Temperature: -20°C to +65°C
• Humidity: Up to 95% RH (non-condensing)
• Ingress Protection: IP30
• Dimensions: 87 × 87 × 54 mm | Weight: 110g

Certifications: Applus Certified (n°1922-CPR-1115) | EN54-11 & EN54-17 Compliant
