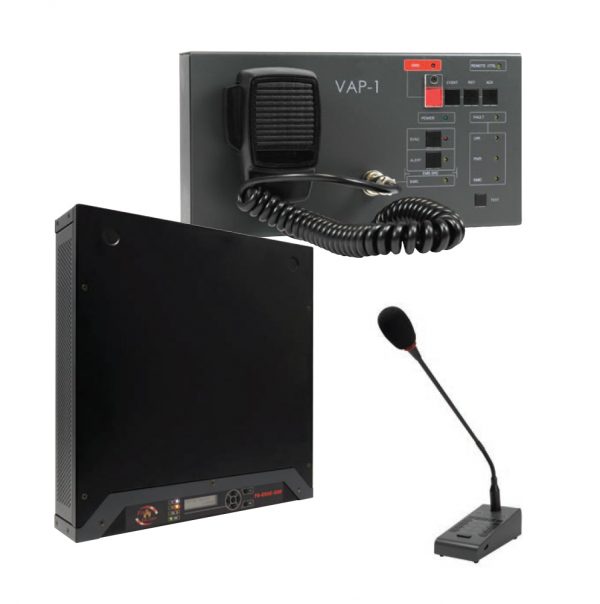

EVAC Audio Systems provide voice communication. The Audio Controller has built in two amplifier 500 watt with backup and built in power supply charger 30 hours stand by + 30 minutes Evac. It continues to provide two simultaneous channels EVAC and Alert 10 minutes and optional 3 x balanced audio input + 2 Mixer. Digitized alarm tones and digitally recorded voice messages and message construction, and manages both multiple 8 button microphone zone inputs and 3 audio inputs with 1 Mixer and 2 message player and 6 audio output.

Features

• Alarm/evacuation signal generation with multiple built-in tones
• Standard or customized digital message storage and message generation
• Automatic or manual operation
• Mass Notification operation 1- 2 channels simultaneously and optional above 2 channels are available.
• Audio systems provide dual channel operation
• 3x audio balance Input and Dry contact to interface external Audio Source and MIC and 1x Mixer and 2 amplifier’s Mixer output
• 1x Bus ACSI to interface 8 Voice alarm panel or 8x MIC or Mixed together up to 8 units.
• Up 10 x500 Watt Amplifiers can connect in RS485 to distribute in a group of floors .
• Each Amplifier support 6x Speakers zones to configure channel #1 EVAC and Channel #2 x Alert and phase evacuation other Speaker zones can be customised message.
• 3 Dry contact relay 1. General Alarm 2. Emergency Evac 3.
• Recorded Audio Messages can be import from USB
• USB Back up and Restore
• Backup Amplifiers 500Watt
• Advanced integration Override output 24V, Attenuators, Flash light and 3rd party system
• 6x Audio Output 24V for Attenuator and Flash Lights and 4 x Pre-Amplifier output
• Fire Alarm integration with supervision
• Speakers line supervision
• Battery supervision
• Wiring Method A+B
• Wall Mount and Rack mount design
