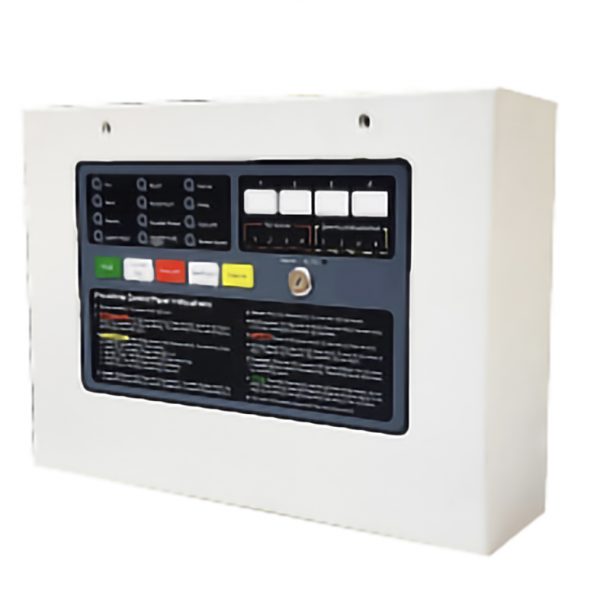

FGZ series conventional “Fire alarm control panel supports 1/2/4 zones and 3 groups of sounders. Each zone can connect up to 50 smoke detectors, heat detectors, manual call points, etc. All zones and sounders of the “Fire alarm system can be disabled. All input and output devices are monitored by the control panel, and the control panel will automatically disconnect when the zones or sounders are short.

The control panel can provide 24VDC / 300mA power for products that require an additional24V power supply. The detailed status indicators clearly show the working status of the control panel and provide the “First Fire alarm and subsequent “Fire alarm functions.

After the control panel sends a “Fire alarm signal, it can provide up to 120 seconds delay time to con rm whether there is a real re alarm. In addition, the control panel also provides the mains-lost silence function. After configure the mains-lost silence mode, the control panel will no longer send a fault signal to remind the user when the main power is lost.

Technical Data

• Main power: AC220V± 15%,S0Hz/ AC110V± 15%,60Hz
• Zone voltage: 24v±2V
• Number of zones: 1,2,4
• Zone and sounder end of line resistors: 3.9KO, 1 W
• Zone monitoring current: <4.SmA
• Zone alarm current: > 20mA
• Zone short current: > 1 10 mA
• Battery: DC 24V ( 2 x 12V 3.3Ah)
• Sounder alarm output: 3 x 300mA (max}/24VDC
• Auxiliary Supply: 300mA/24V
• One set of fault relay contacts: Rated at 0.SA SELV
• Humidity: :o;95%RH
• Dimensions: 290 x 87.5 x 211.5mm
• weight: 2100g (without battery)
