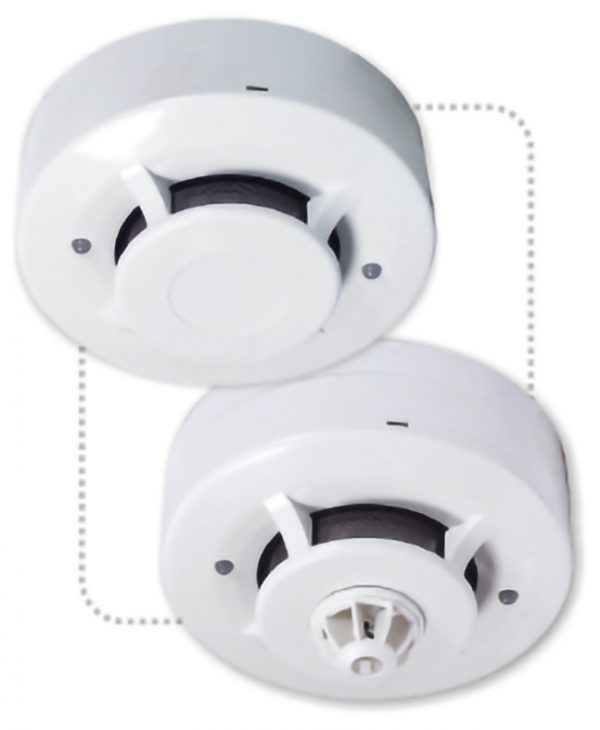

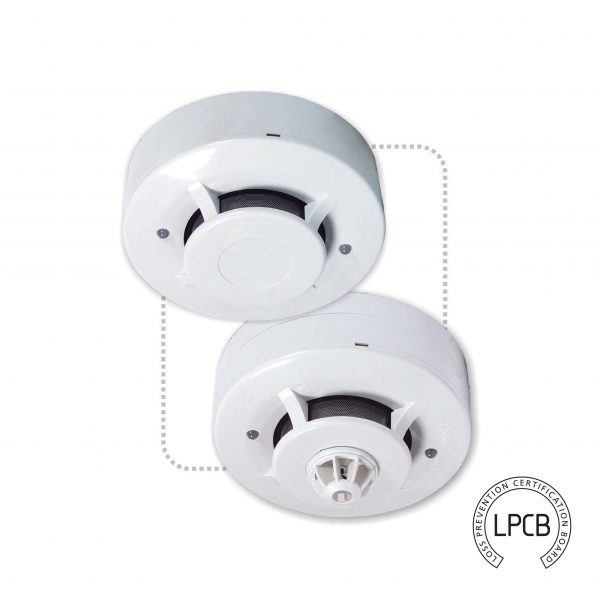

The FG318 and FG323 are LPCB-certified conventional photoelectric smoke and heat detectors designed to respond reliably across a wide spectrum of fire types. Factory tested and calibrated for high accuracy and low false alarm rates, they combine advanced detection technology with a sleek, low-profile design that suits any commercial or residential installation.

Two Detection Technologies, One Consistent Platform
The FG318 uses advanced photoelectric smoke detection technology, offering a coverage area of up to 100 m² per detector. The FG323 is a conventional heat detector covering up to 50 m². Both share the same compact form factor and dual 360° LED indicators, ensuring consistent visual alarm confirmation from any viewing angle.

Flexible Wiring Options
Available in 2-wire and 2-wire with LED variants, with a selectable N/C (normally closed) or N/O (normally open) relay output — providing the flexibility to suit a wide range of conventional fire alarm panel configurations. Detector sensitivity is programmable via the FACP.

Key Specifications

• Operating Voltage: 12V
• Smoke Sensitivity: EN54-5/7:2000 standard
• Detection Range: 100 m² (smoke) / 50 m² (heat)
• Start-Up Current: 70 µA max
• Alarm Indicator: Red LED, continuously lit
• Reset Voltage: Less than 1V | Reset Time: Less than 1 second
• Remote Output: 15 mA max, diode gate
• Operating Temperature: -10°C to +50°C
• Humidity: 0–95% RH (non-condensing)
• Dimensions: Ø100mm × H46mm (with base) | Weight: 130g

Models Available

• FG318-2 — 2 Wire Optical Smoke Detector
• FG318-2L — 2 Wire Optical Smoke Detector with LED
• FG323-2 — 2 Wire Heat Detector
• FG323-2L — 2 Wire Heat Detector with LED

Certifications: LPCB Certified | EN54-5/7:2000 Compliant
