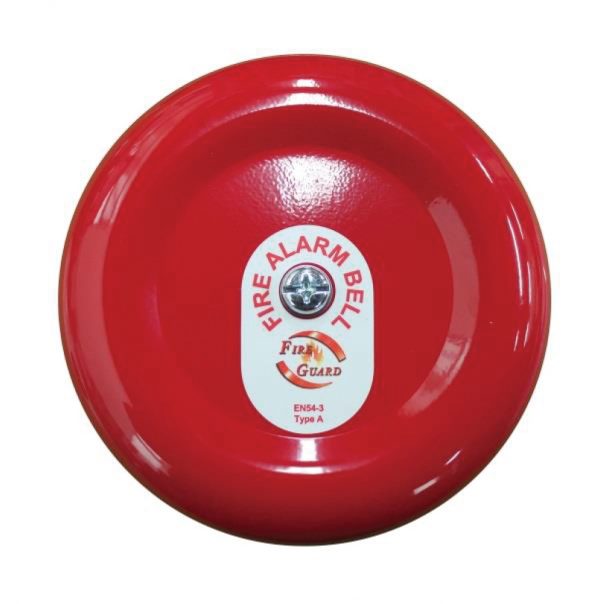

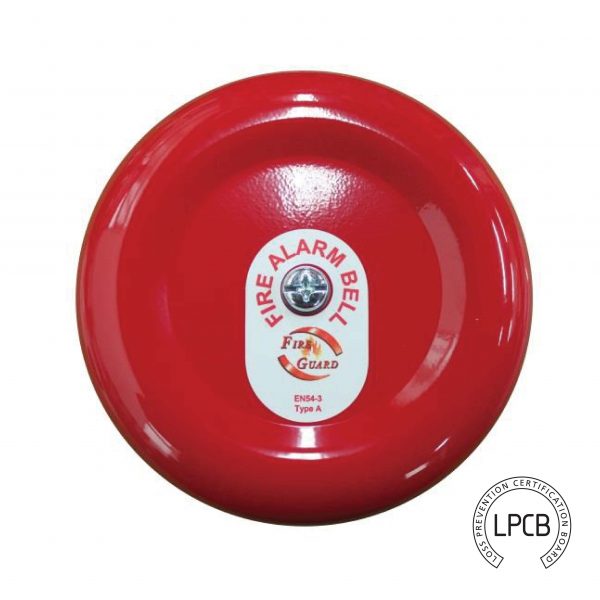

Alarm Bell
The FG0218 is a robust, LPCB-certified 24VDC motorised fire alarm bell delivering a powerful 93 dB audible alert for conventional fire alarm systems. Built to EN54-3 Type A standards, it combines high sound output with ultra-low current consumption — making it an efficient and reliable notification device for commercial, industrial, and institutional applications.
Reliable & Interference-Free
Fitted with two series diodes for built-in fault monitoring, the FG0218 is fully suppressed to prevent any interference with other equipment on the circuit. The acetral gear wheel and steel striker mechanism ensures consistent, dependable bell operation throughout the product’s life.
Simple Installation
A versatile multi-fixing base plate in moulded black polycarbonate allows straightforward mounting on virtually any surface type. Terminals accept cables up to 2.5mm² for easy wiring.
Key Specifications
- Voltage: 24 VDC | Current: 25 mA
- Sound Output: 93 dB @ 1m
- Dimensions: Ø152mm × H56mm | Weight: 850g
- Movement: Motor, pinion and steel striker
- Gong: Steel, secured with Philips screw
- Base Plate: Moulded black polycarbonate
Certifications: LPCB Certified | EN54-3 Type A Compliant
