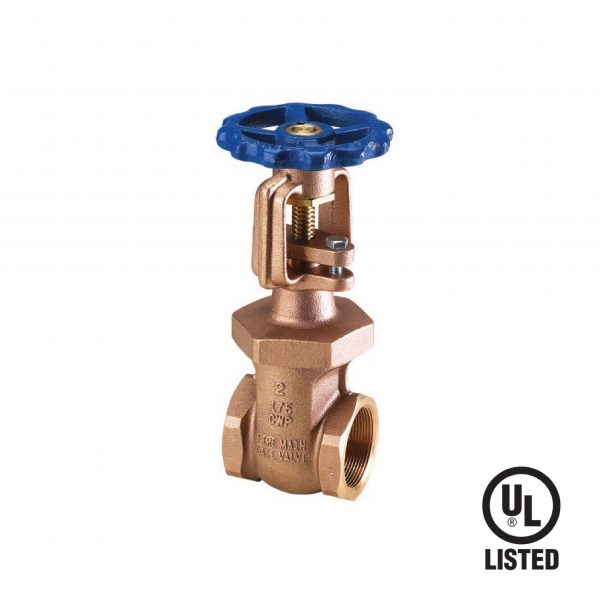

FGT50 Bronze Gate Valve — Fire Protection Service (OS&Y, Rising Stem)
The FGT50 is a UL Listed fire protection grade bronze gate valve designed for the isolation of clean water and non-corrosive fluids. Ideal for building services, water treatment, fire suppression systems, and general industrial water isolation, it delivers consistent and dependable shutoff performance where reliability is critical.
Features
- Compact structure with reliable sealing
- Non-rising stem to minimise installation height in confined spaces
- Threaded bonnet construction with graphite gland packing
- Low pressure drop for minimal flow restriction when fully open
- Available in ANSI B1.20.1 NPT and BS21 BSPT thread connections
Specifications
- Certification: UL Listed
- Body Material: Bronze ASTM C83600
- Stem: Brass | Handwheel: Cast Iron
- Medium: Water (clean, non-corrosive)
- Connection Standard: ANSI B1.20.1 NPT / BS21 BSPT
- Available Sizes: ¾” · 1″ · 1¼” · 1½” · 2″
Pressure Ratings
- Working Pressure: 175 PSI (CWP)
- Seat & Shell Test Pressure: 350 PSI / 80 PSI Air
