Straight-Through Diaphragm Deluge Valve – Model D1-F, D1-FG & D1-G

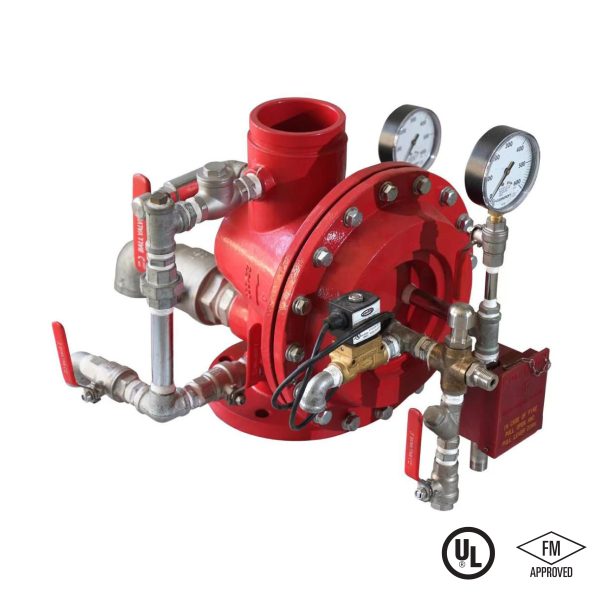

The Fireguard Deluge Valve is a hydraulically operated, diaphragm-type deluge valve designed for rapid, reliable water release into deluge, water spray, foam-water, and other special-hazard fire protection systems. Its straight-through flow path and resilient diaphragm sealing arrangement provide reliable sealing under normal standby conditions. On activation, pressure is released from the diaphragm chamber via an electric, pneumatic, or manual release mechanism, allowing the valve to open rapidly and simultaneously trigger a water-flow alarm.
Key Features:
- Straight-through flow path for efficient water passage
- Diaphragm-operated design for reliable, rapid operation
- Electric, pneumatic, or manual remote activation
- Integrates with automatic detection and release systems
- Available with grooved, flanged, or combination end connections
- Integral alarm outlet for hydraulic alarm devices
- Optional control valves for a complete valve assembly
- Compact design for easy installation and maintenance
- Available in sizes 2″ to 8″
- UL Listed / FM Approved configurations available*
Key Specs:
- Operating Principle: Hydraulic diaphragm operation
- Activation: Electric / Pneumatic / Manual
- Available Sizes: 2″, 2.5″, 3″, 4″, 6″, 8″
- Max Working Pressure: 250 psi / 300 psi (depending on model)
- Max Test Pressure: 500 psi / 600 psi (depending on rated working pressure)
- End Connections: Grooved / Flanged / Grooved x Flanged
- Groove Standard: AWWA C606 / ISO 6182 (as applicable)
- Flange Standard: ASME B16.42 Class 150/300 or DIN 2501 PN16/PN25
- Alarm Outlet: ¾” NPT
- Installation Position: Horizontal or vertical, per applicable listing
- Approvals: UL 260; FM 1011/1012/1013 and FM 1020, as applicable
Model Range:
| Model | Description |
|---|---|
| D1-F250 | Flange x Flange, 250 PSI |
| D1-F300 | Flange x Flange, 300 PSI |
| D1-FG250 | Groove x Flange, 250 PSI |
| D1-FG300 | Groove x Flange, 300 PSI |
| D1-G250 | Groove x Groove, 250 PSI |
| D1-G300 | Groove x Groove, 300 PSI |
Applications: Deluge sprinkler systems, water spray systems, open-nozzle fire protection, foam-water deluge systems, transformer protection, storage tank protection, process plant protection, oil and gas facilities, power generation, industrial special-hazard areas, aircraft hangars, warehouses.
*FM approval under process at time of this datasheet.
