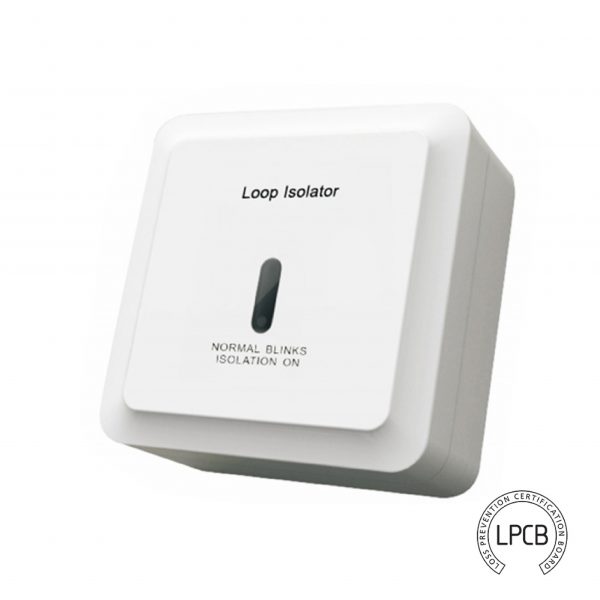

The IQ361MI loop isolator is used to isolate a faulty section of a bus in the event of a short circuit, ensuring other devices on the loop continue to operate normally. Once the fault is cleared, the isolated section is automatically reconnected back into the system. The isolator also helps determine the physical location of a short circuit on the bus.

Key Features:

• LPCB & CPR approved
• Isolates faulty loop sections in the event of a short circuit
• Automatically resets once the fault has been cleared
• LED status indicator — yellow, flashes when polling, illuminates in action

Key Specs:

• Nominal Line Voltage: 24V (Max 28V / Min 16V)
• Standby Current: <3mA
• Capacity: 32 devices
• Isolation Voltage: 8–11V (VSO) | Reconnect Voltage: 1.4–4V (VSC)
• Max Continuous Current (switch closed): 1A | Max Switching Current: 3A
• Max Leakage Current (switch open): 15mA
• Max Series Impedance (switch closed): 0.15Ω
• Operating Temperature: -10°C to +55°C
• Relative Humidity: ≤95%, non-condensing
• Material of Enclosure: ABS
• Dimensions: 86 x 86 x 41mm (with base)
• Mounting Hole Distance: 60.5mm
• Weight: ~122g (with base)
