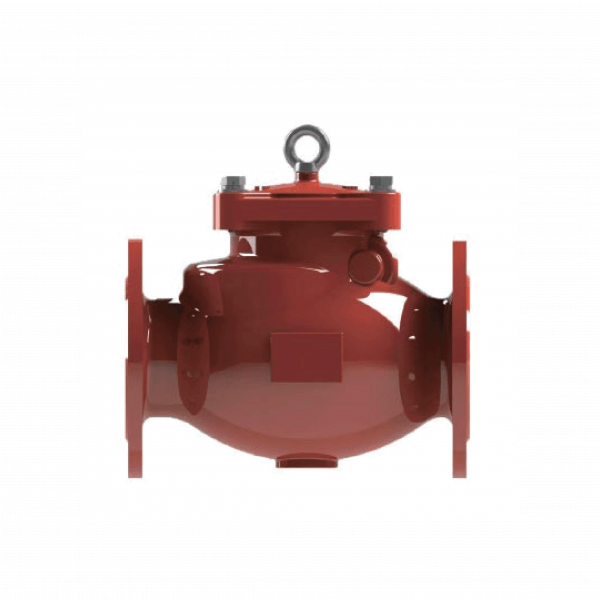

Resilient Seated Flanged Ends Swing Check Valve FCF01
A resilient seated flanged swing check valve conforming to AWWA C508 with a clear waterway design and fusion bonded epoxy coating compliant with AWWA C550. The FCF01 is suitable for fire protection and water supply applications, preventing backflow with a robust ductile iron body and bronze seat construction.
Available in sizes from 50mm (2″) to 300mm (12″), the FCF01 accommodates a wide range of flanged end standards including ANSI, EN, and BS, making it highly versatile for international projects and installations.
Key Specs:
- Valve Standard: AWWA C508 | Coating: AWWA C550
- Working Pressure: 200 / 250 / 300 PSI
- Working Temperature: -10°C to 110°C
- Sizes: 50mm to 300mm (2″ to 12″)
- Flanged Ends: ANSI B16.1 Class 125 / B16.42 Class 150 / B16, EN1092-2 PN10/PN16/PN25, BS10 Table D/Table E
Materials:
| Part | Material |
|---|---|
| Body | Ductile Iron (ASTM A536 65-45-12) |
| Cover | Ductile Iron (ASTM A536 65-45-12) |
| Clapper | Carbon Steel + SS304 + EPDM |
| Clapper Arm | Ductile Iron (ASTM A536 65-45-12) |
| Hinge Pin | Stainless Steel (AISI 304) |
| Seat | Bronze (ASTM C84400) |
Specifications subject to change without prior notice due to product optimisation.
