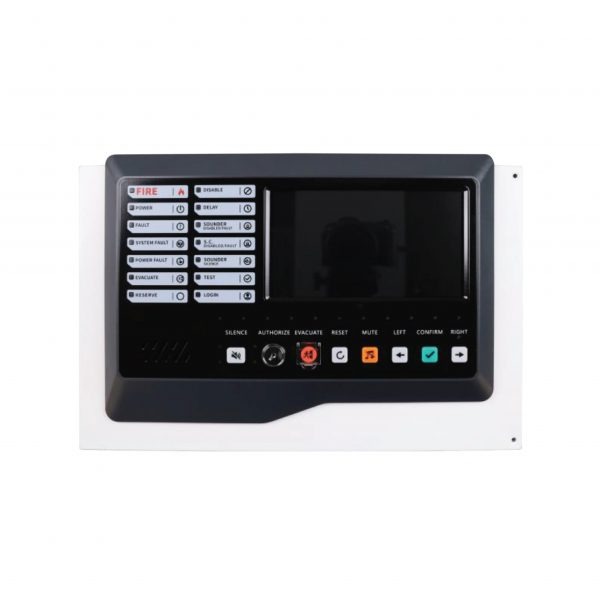

he FG3000 is a remote indication and control panel that communicates with the IQ304/IQ308 Fire Alarm Control Panel (FACP) via CAN or Ethernet network. Fully functional with the same display as the FACP, it supports evacuation, silence/resound, and reset functions from a remote location.

Key Features:

• 7.0″ color touch-sensitive LCD, 800×480 resolution
• 1 fire alarm relay and 1 fault relay output, with USB upgrade support
• Supports up to 60 total nodes (Repeater + FACP) on the network
• Configuration data import/export via direct PC connection (Type-C interface)
• Stores up to 10,000 records each for fire alarm, fault, C&E, and operation events

Key Specs:

• Quiescent Voltage: 18–30V DC | Quiescent Current (full loaded): <0.1A
• FIRE OUT: 18–28V DC, 50mA max, 10KΩ end-of-line resistor
• Fault Out (NC, COM, NO): 2A @24VDC
• CAN: 20–28VDC, 1A max output current, 10KΩ end-of-line resistor

Controls: Fire, Disable, Power, Delay, Fault, Sounder Disabled/Fault, System Fault, S.C. Disabled/Fault, Power Fault, Sounder Silence, Evacuate, Test, Reserve, Login — plus Silence, Authorize, Evacuate, Reset, Mute, Left/Right navigation, and Confirm buttons, matching the FACP interface.
