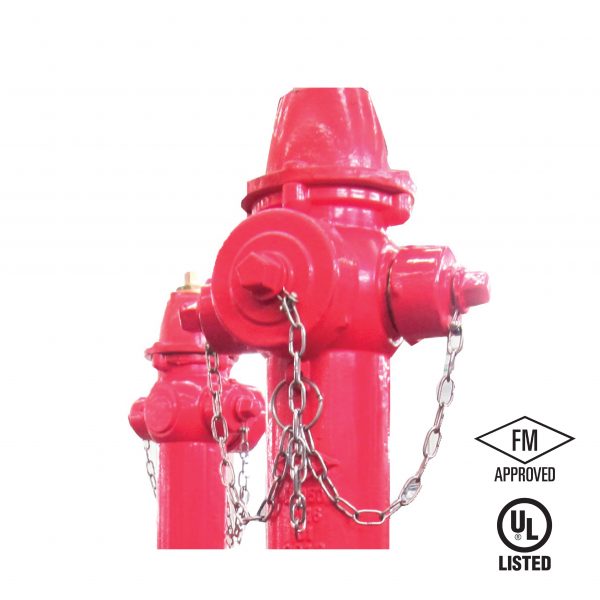

The Fireguard FGH701 and FGH702 are UL Listed and FM Approved dry barrel fire hydrants engineered to meet or exceed ANSI/AWWA C502, UL246, and FM1510 standard requirements. Built on over 100 years of dry barrel hydrant heritage, they deliver the critical reliability demanded of emergency firefighting infrastructure — with a 10-year guarantee to back it up.

Breakaway Safety & Freeze Protection
In the event of a vehicle impact, the breakaway flange ensures only the upper section separates, maintaining the seal with no water leakage and allowing rapid repair without interrupting the water supply. The dry barrel design keeps the hydrant barrel water-free when not in use, eliminating freeze damage in cold climates.

Advanced Engineering for Long-Term Performance
A sealed oil reservoir with O-ring seals automatically lubricates stem threads and bearing surfaces every time the hydrant is operated — eliminating manual lubrication requirements and ensuring smooth, low-torque operation throughout the hydrant’s service life. The bronze seat ring, bronze drain screw plug, and EPDM-encapsulated ductile iron wedge combine corrosion resistance with reliable long-term sealing. A gland nut prevents unauthorised removal of the operating nut, and the sealed bonnet prevents water ingress that could cause freezing.

Easy Maintenance
Supplied complete with repair kits covering main valve components, safety flange, bonnet, and extension parts. All repairs can be carried out above ground without excavation or shutting off the water supply. Barrel length extension kits are available on request to suit varying bury depths.

Key Specifications

• Working Pressure: 250 psi (1,723 kPa)
• Test Pressure: 500 psi (3,447 kPa)
• Body: Ductile iron (ASTM A536 65-45-12)
• Wedge: Ductile iron fully encapsulated with EPDM rubber
• Stem: Stainless steel (SS304)
• Outlet Thread: NFPA 1963 (hose nozzle 2.5″ 7.5 NH; pumper nozzle 4.5″/4″ NH)
• Closing Direction: Clockwise (counter-clockwise available on request)
• Default colour: Red

Model Range

Inlet Options
Flanged (ANSI 125 lb faced and drilled), mechanical joint (ANSI/AWWA C111 compliant), or adapter flange for variable pipe sizes. Optional 4″ flange inlet available for 4″ pipe systems.

Certifications: UL Listed (UL246) | FM Approved (FM1510) | ANSI/AWWA C502 Compliant | NFPA 1963
